Sculptured Northern Lg. Mitered High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Lg. Mitered High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0891802

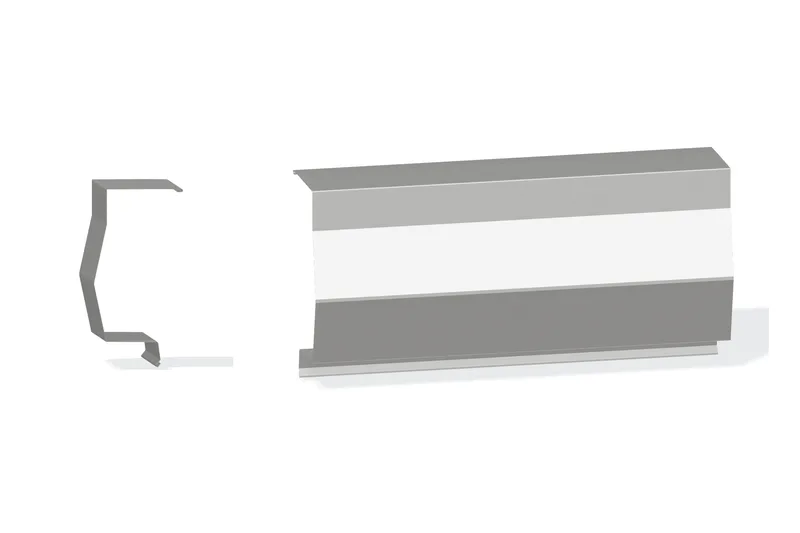

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 26.25; 26.6875; 27.5; 28.3125; 29.125; 29.875; 30.6875
Supplier specifications

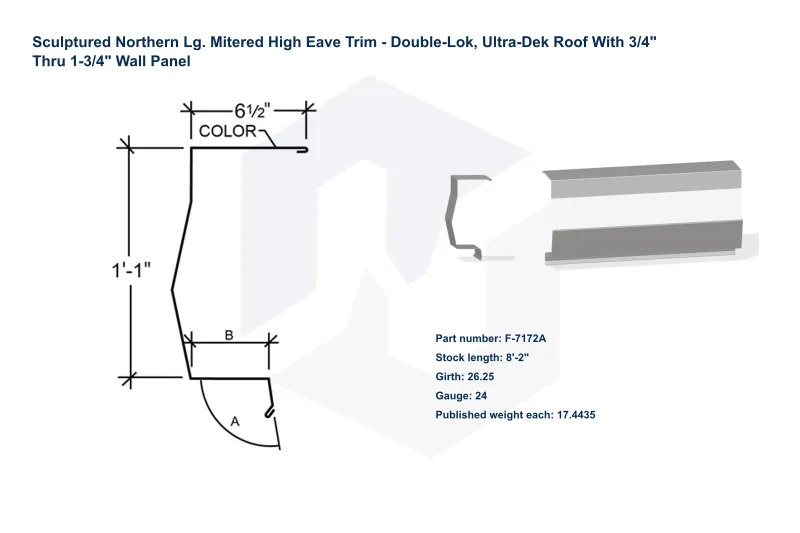

| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7172A | 8'-2" | 26.25 | 24 | 17.4435 |
| F-7172A | 8'-2" | 26.25 | 26 | 13.9011 |
| F-7172B | 8'-2" | 26.6875 | 24 | 17.7342 |
| F-7172B | 8'-2" | 26.6875 | 26 | 14.1328 |
| F-7172C | 8'-2" | 27.5 | 24 | 18.2741 |
| F-7172C | 8'-2" | 27.5 | 26 | 14.5631 |
| F-7172D | 8'-2" | 28.3125 | 24 | 18.814 |
| F-7172D | 8'-2" | 28.3125 | 26 | 14.9934 |
| F-7172E | 8'-2" | 29.125 | 24 | 19.354 |
| F-7172E | 8'-2" | 29.125 | 26 | 15.4237 |
| F-7172F | 8'-2" | 29.875 | 24 | 19.8523 |
| F-7172F | 8'-2" | 29.875 | 26 | 15.8208 |
| F-7172G | 8'-2" | 30.6875 | 24 | 20.3923 |
| F-7172G | 8'-2" | 30.6875 | 26 | 16.2511 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
