Sculptured Northern Lg. High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Lg. High Eave Trim - PBR Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1046667

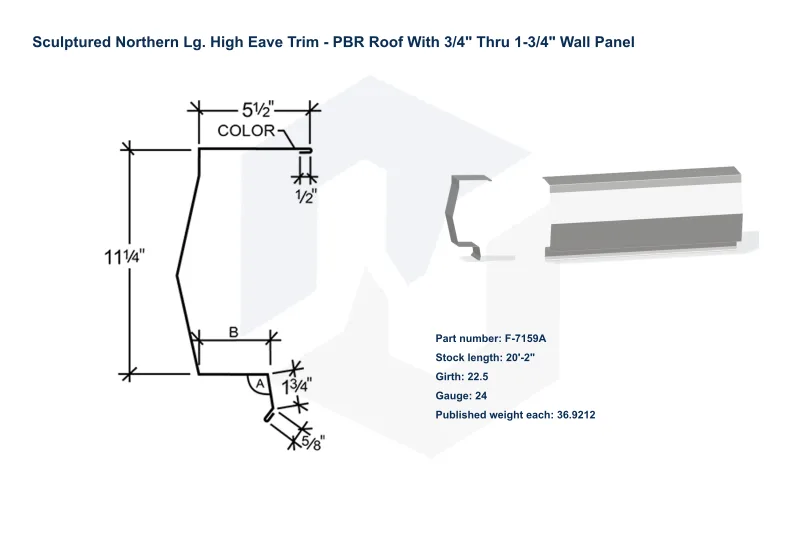

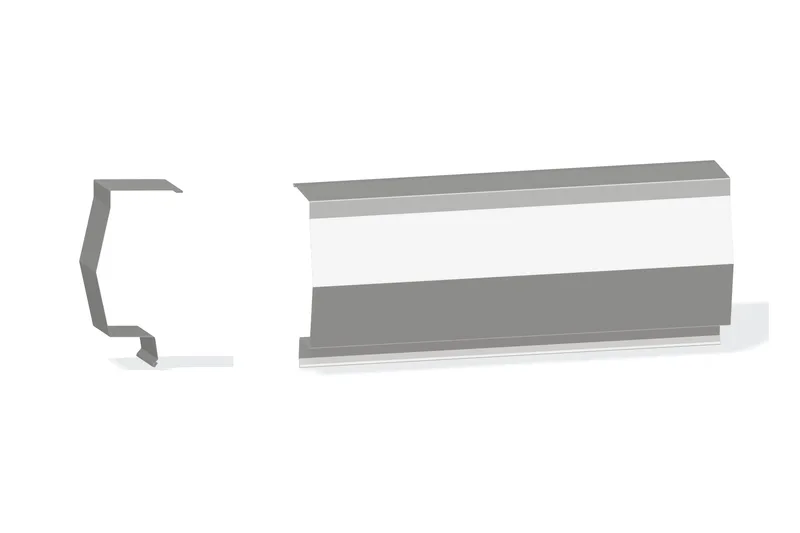

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 22.5; 22.9375; 23.75; 24.5625; 25.375; 26.1875; 26.9375
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7159A | 20'-2" | 22.5 | 24 | 36.9212 |
| F-7159A | 20'-2" | 22.5 | 26 | 29.4234 |
| F-7159B | 20'-2" | 22.9375 | 24 | 37.6391 |
| F-7159B | 20'-2" | 22.9375 | 26 | 29.9955 |
| F-7159C | 20'-2" | 23.75 | 24 | 38.9724 |
| F-7159C | 20'-2" | 23.75 | 26 | 31.0581 |
| F-7159D | 20'-2" | 24.5625 | 24 | 40.3056 |
| F-7159D | 20'-2" | 24.5625 | 26 | 32.1206 |
| F-7159E | 20'-2" | 25.375 | 24 | 41.6389 |
| F-7159E | 20'-2" | 25.375 | 26 | 33.1831 |
| F-7159F | 20'-2" | 26.1875 | 24 | 42.9722 |
| F-7159F | 20'-2" | 26.1875 | 26 | 34.2456 |
| F-7159G | 20'-2" | 26.9375 | 24 | 44.2029 |
| F-7159G | 20'-2" | 26.9375 | 26 | 35.2264 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
