Sculptured Northern Lg. High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Lg. High Eave Trim - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0821628

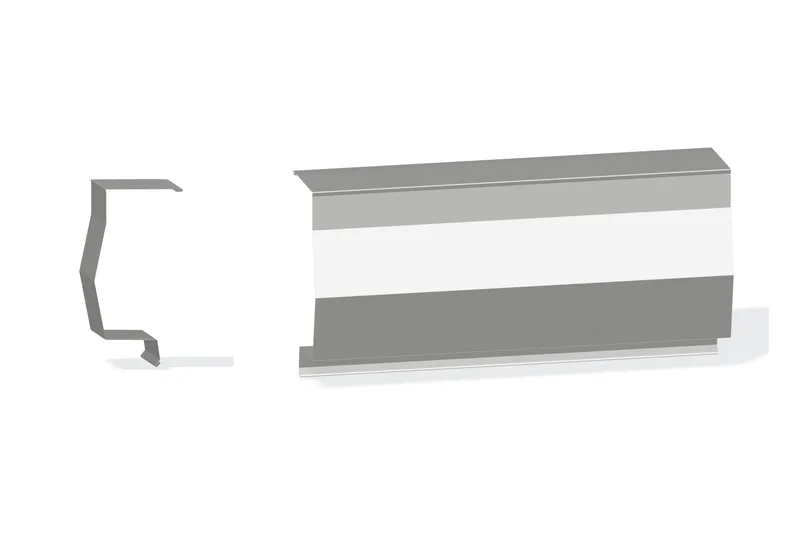

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 14'-2"
- Published gauges
- 24; 26
- Published girth
- 26.25; 26.6875; 27.5; 28.3125; 29.125; 29.875; 30.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7171A | 14'-2" | 26.25 | 24 | 30.2591 |
| F-7171A | 14'-2" | 26.25 | 26 | 24.1142 |
| F-7171B | 14'-2" | 26.6875 | 24 | 30.7634 |
| F-7171B | 14'-2" | 26.6875 | 26 | 24.5161 |
| F-7171C | 14'-2" | 27.5 | 24 | 31.7 |
| F-7171C | 14'-2" | 27.5 | 26 | 25.2625 |
| F-7171D | 14'-2" | 28.3125 | 24 | 32.6366 |
| F-7171D | 14'-2" | 28.3125 | 26 | 26.0089 |
| F-7171E | 14'-2" | 29.125 | 24 | 33.5732 |
| F-7171E | 14'-2" | 29.125 | 26 | 26.7553 |
| F-7171F | 14'-2" | 29.875 | 24 | 34.4377 |
| F-7171F | 14'-2" | 29.875 | 26 | 27.4443 |
| F-7171G | 14'-2" | 30.6875 | 24 | 35.3743 |
| F-7171G | 14'-2" | 30.6875 | 26 | 28.1907 |
Product resources
Request current drawings and installation instructions for your selected product.

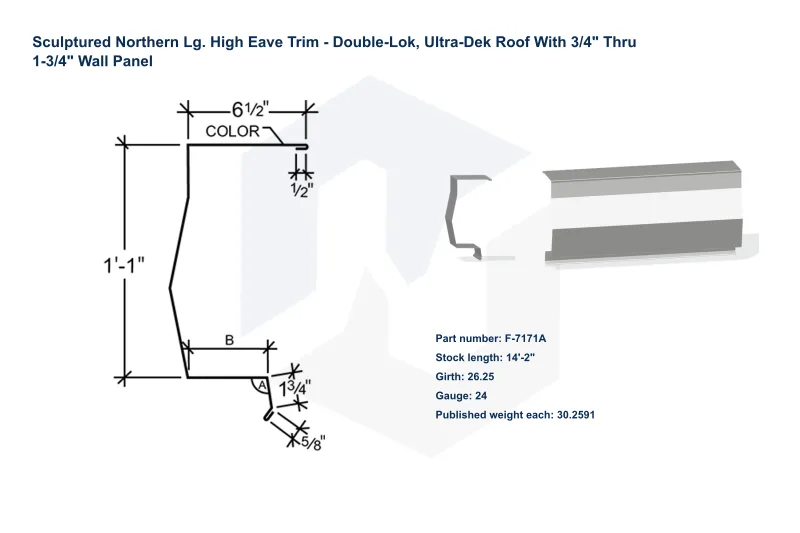

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
