Sculptured Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Sculptured Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1100347

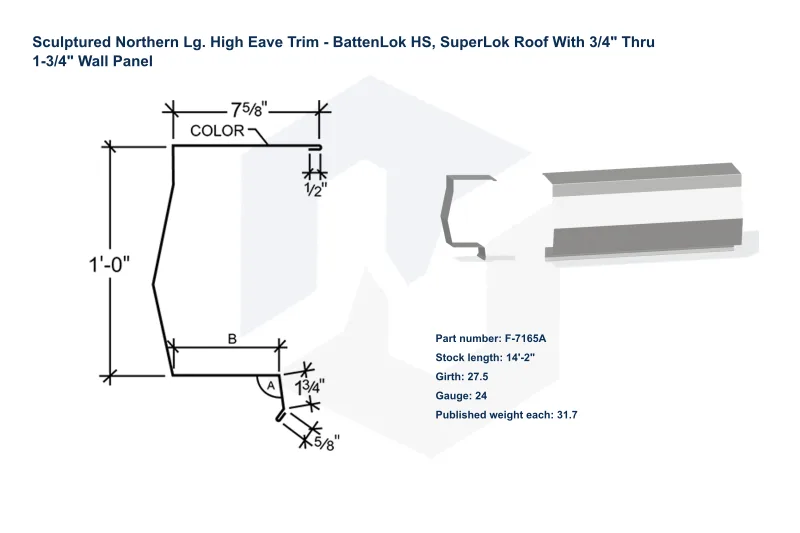

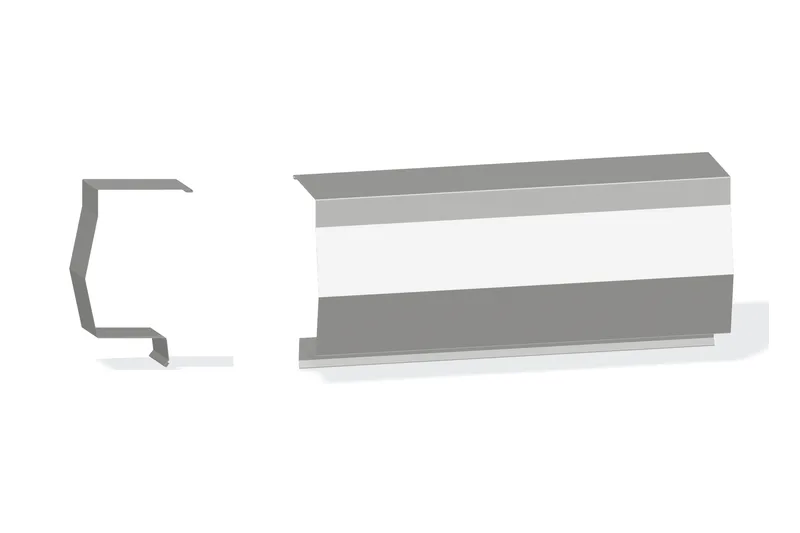

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 14'-2"
- Published gauges
- 24; 26
- Published girth
- 27.5; 27.9375; 28.75; 29.5625; 30.375; 31.125; 31.9375
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7165A | 14'-2" | 27.5 | 24 | 31.7 |
| F-7165A | 14'-2" | 27.5 | 26 | 25.2625 |
| F-7165B | 14'-2" | 27.9375 | 24 | 32.2043 |
| F-7165B | 14'-2" | 27.9375 | 26 | 25.6644 |
| F-7165C | 14'-2" | 28.75 | 24 | 33.1409 |
| F-7165C | 14'-2" | 28.75 | 26 | 26.4108 |
| F-7165D | 14'-2" | 29.5625 | 24 | 34.0775 |
| F-7165D | 14'-2" | 29.5625 | 26 | 27.1572 |
| F-7165E | 14'-2" | 30.375 | 24 | 35.0141 |
| F-7165E | 14'-2" | 30.375 | 26 | 27.9036 |
| F-7165F | 14'-2" | 31.125 | 24 | 35.8786 |
| F-7165F | 14'-2" | 31.125 | 26 | 28.5926 |
| F-7165G | 14'-2" | 31.9375 | 24 | 36.8152 |
| F-7165G | 14'-2" | 31.9375 | 26 | 29.339 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
