Sculptured Northern Lg. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel
Sculptured Northern Lg. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof With 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0990731

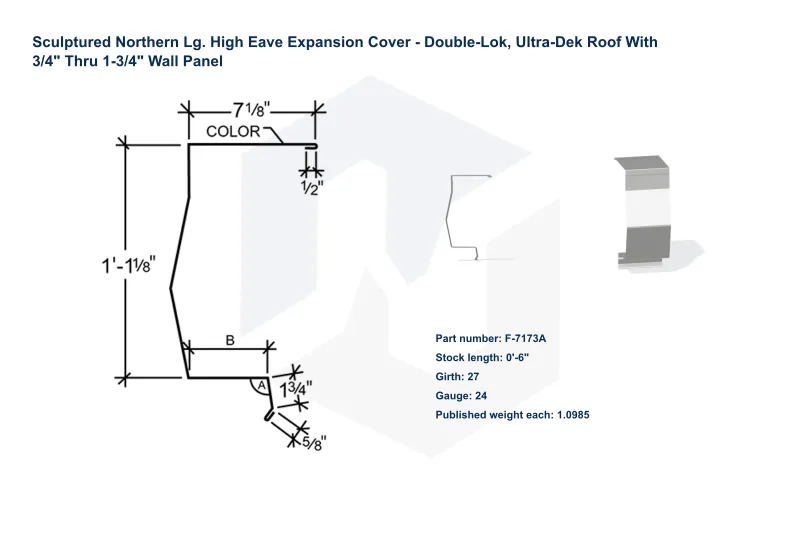

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 27; 27.4375; 28.25; 29.0625; 29.875; 30.625; 31.4375
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-7173A | 0'-6" | 27 | 24 | 1.0985 |
| F-7173A | 0'-6" | 27 | 26 | 0.8754 |
| F-7173B | 0'-6" | 27.4375 | 24 | 1.1163 |
| F-7173B | 0'-6" | 27.4375 | 26 | 0.8896 |
| F-7173C | 0'-6" | 28.25 | 24 | 1.1493 |
| F-7173C | 0'-6" | 28.25 | 26 | 0.9159 |
| F-7173D | 0'-6" | 29.0625 | 24 | 1.1824 |
| F-7173D | 0'-6" | 29.0625 | 26 | 0.9423 |
| F-7173E | 0'-6" | 29.875 | 24 | 1.2154 |
| F-7173E | 0'-6" | 29.875 | 26 | 0.9686 |
| F-7173F | 0'-6" | 30.625 | 24 | 1.246 |
| F-7173F | 0'-6" | 30.625 | 26 | 0.9929 |
| F-7173G | 0'-6" | 31.4375 | 24 | 1.279 |
| F-7173G | 0'-6" | 31.4375 | 26 | 1.0193 |
Product resources
Request current drawings and installation instructions for your selected product.

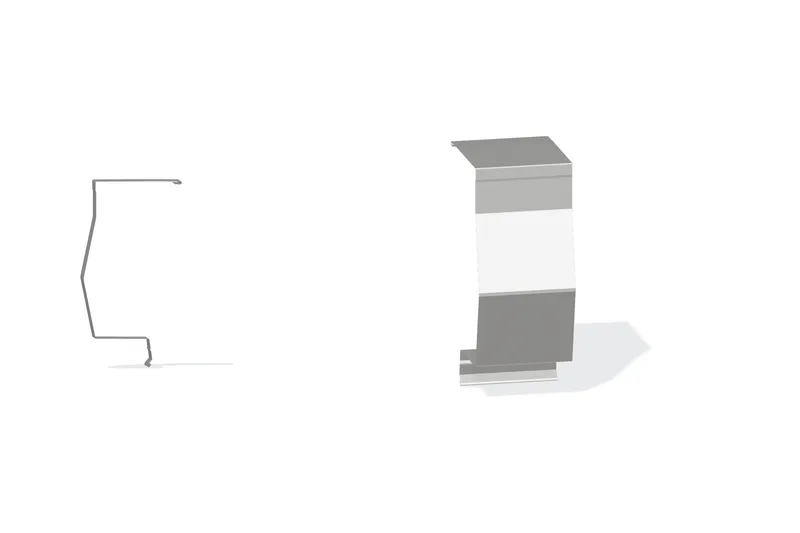

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
