Sculptured Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3"

0 / 5

0 ratings0 recorded purchasers

Sculptured Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3". Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.

Reference part: 6900-0754196

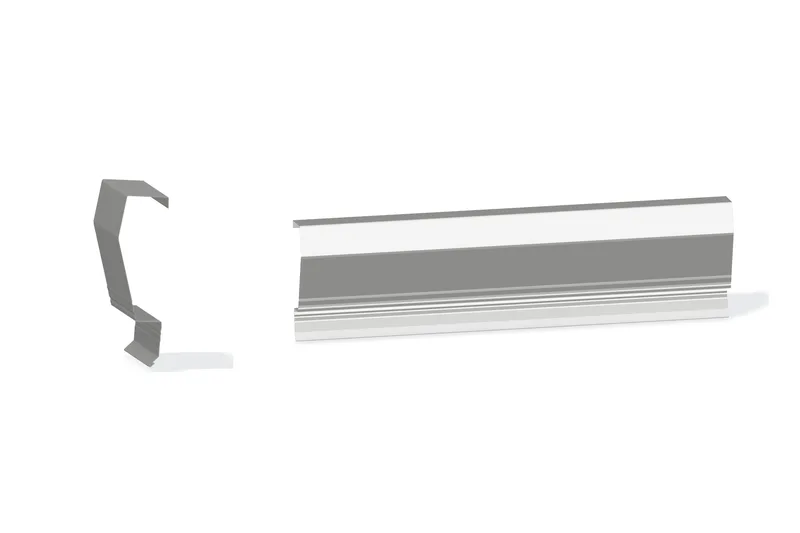

Sculptured Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3" — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Thickness

Measurement Type

Roof Slope

Embossed

Strippable Film

Roof angle (degrees) — alternative to slopeInactive: Slope method selected.Length (inches)

Custom request · price to confirmOn confirmation

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2" Max
Published gauges: 24; 26
Published girth: 12.75
Published weight per piece: 1.0375; 0.8268

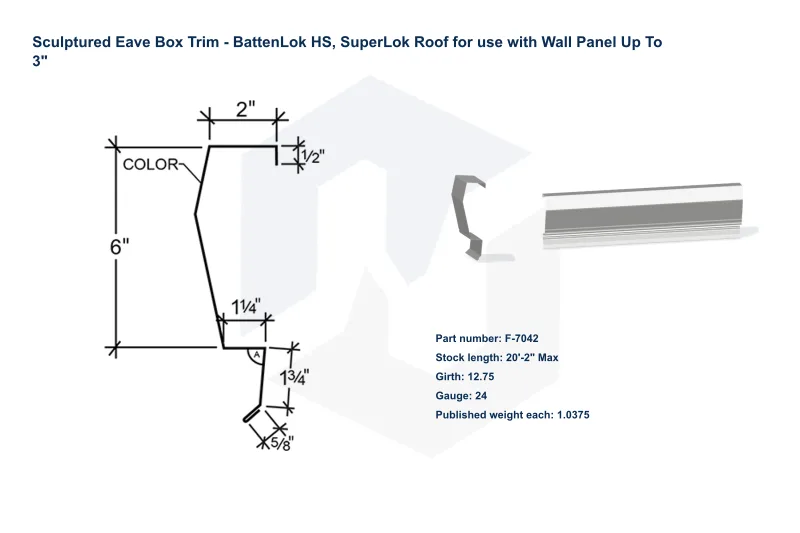

Supplier specifications

Reference part: F-7042. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-7042	20'-2" Max	12.75	24	1.0375
F-7042	20'-2" Max	12.75	26	0.8268

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
