Outside Corner Trim - AVP
0 ratings0 recorded purchasers
Outside Corner Trim - AVP. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.
Reference part: 69.24.001.F833

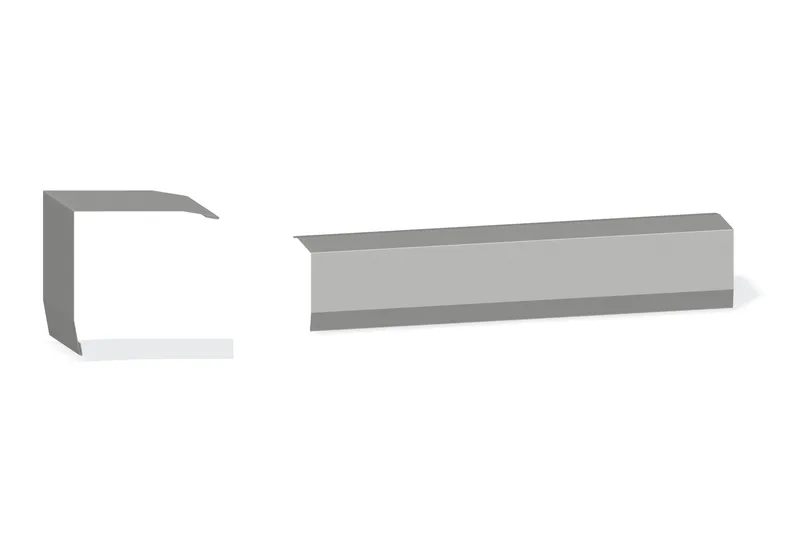

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Price recorded
Published product details
- Published lengths
- 20'-2" Max
- Published gauges
- 24; 26
- Published girth
- 12.5
- Published weight per piece
- 1.0171; 0.8106
Supplier specifications

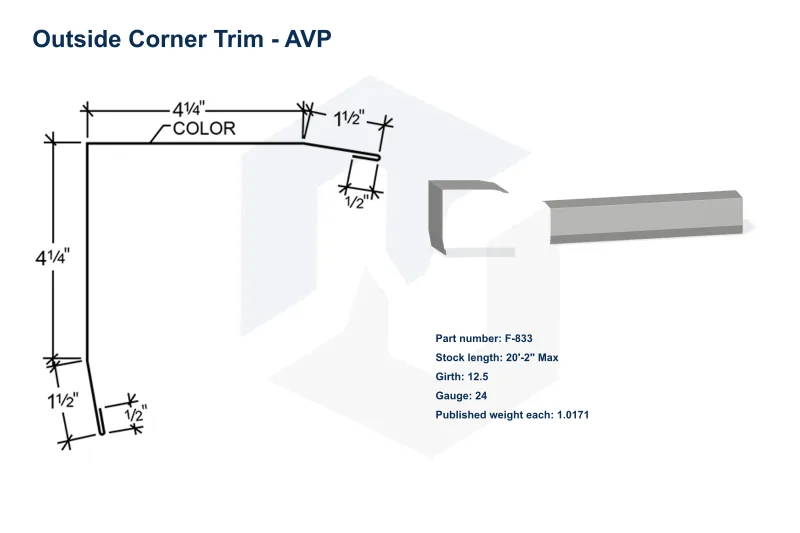

| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-833 | 20'-2" Max | 12.5 | 24 | 1.0171 |
| F-833 | 20'-2" Max | 12.5 | 26 | 0.8106 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
