TRIM CATALOG · Edgecraft Trim

Outside Corner Parametric Trim - PBR, AVP

0 / 5

0 ratings0 recorded purchasers

Outside Corner Parametric Trim - PBR, AVP. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.

Reference part: 6970-1056190

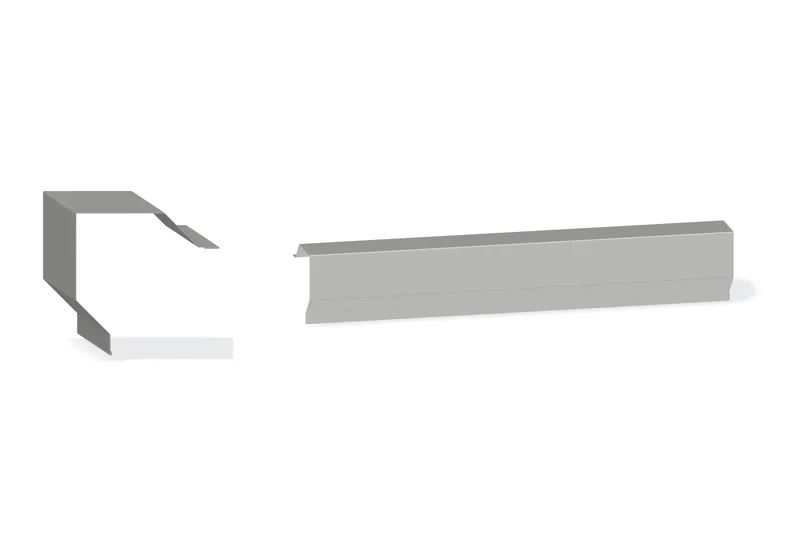

Outside Corner Parametric Trim - PBR, AVP — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Thickness

Embossed

Strippable Film

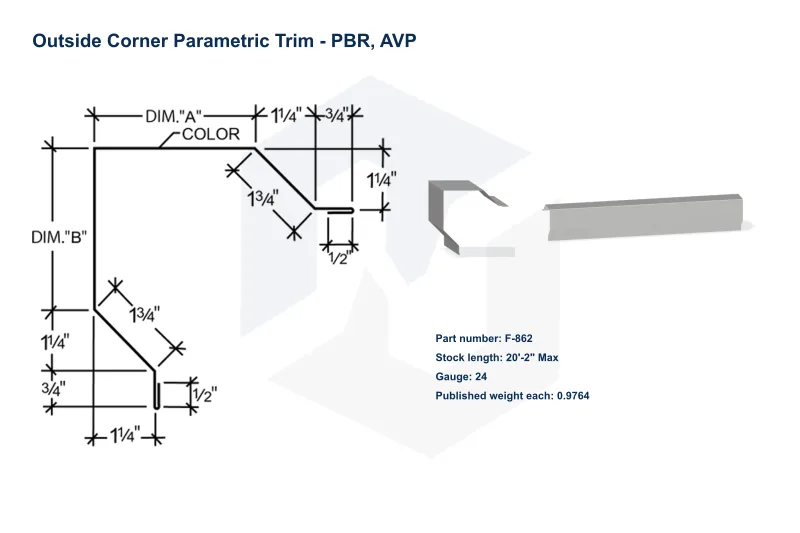

Length (inches)Drawing dimension A (inches)Drawing dimension B (inches)

Custom request · price to confirmOn confirmation

Price recorded

Requested quantity

Check the product inputs to add this selection.

Published product details

Published lengths: 20'-2" Max
Published gauges: 24; 26
Published weight per piece: 0.9764; 0.7781

Supplier specifications

Reference part: F-862. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-862	20'-2" Max		24	0.9764
F-862	20'-2" Max		26	0.7781

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
