TRIM CATALOG · Edgecraft Trim

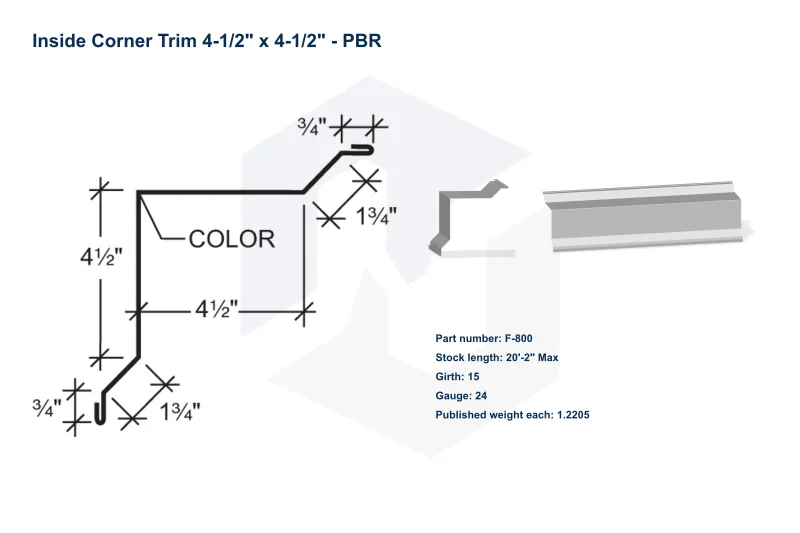

Inside Corner Trim 4-1/2" x 4-1/2" - PBR

0 / 5

0 ratings0 recorded purchasers

Inside Corner Trim 4-1/2" x 4-1/2" - PBR. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.

Reference part: 69.24.001.F800

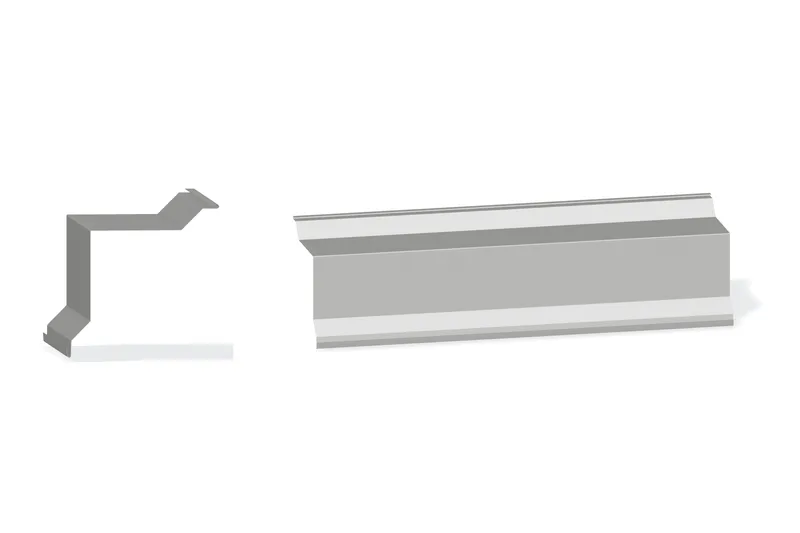

Inside Corner Trim 4-1/2" x 4-1/2" - PBR — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Thickness

Embossed

Strippable Film

Length (inches)

Custom request · price to confirmOn confirmation

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2" Max
Published gauges: 24; 26
Published girth: 15
Published weight per piece: 1.2205; 0.9727

Supplier specifications

Reference part: F-800. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-800	20'-2" Max	15	24	1.2205
F-800	20'-2" Max	15	26	0.9727

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
