Flush Outside Corner Trim 3" x 7"

0 / 5

0 ratings0 recorded purchasers

Flush Outside Corner Trim 3" x 7". Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.

Reference part: 6950-1145011

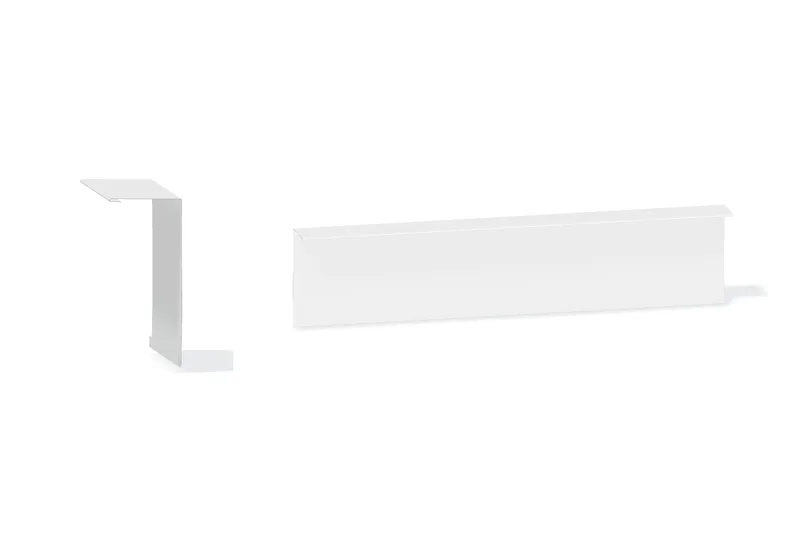

Flush Outside Corner Trim 3" x 7" — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Thickness

Embossed

Strippable Film

Length (inches)

Custom request · price to confirmOn confirmation

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2" Max
Published gauges: 24; 26
Published girth: 11
Published weight per piece: 0.8951; 0.7133

Supplier specifications

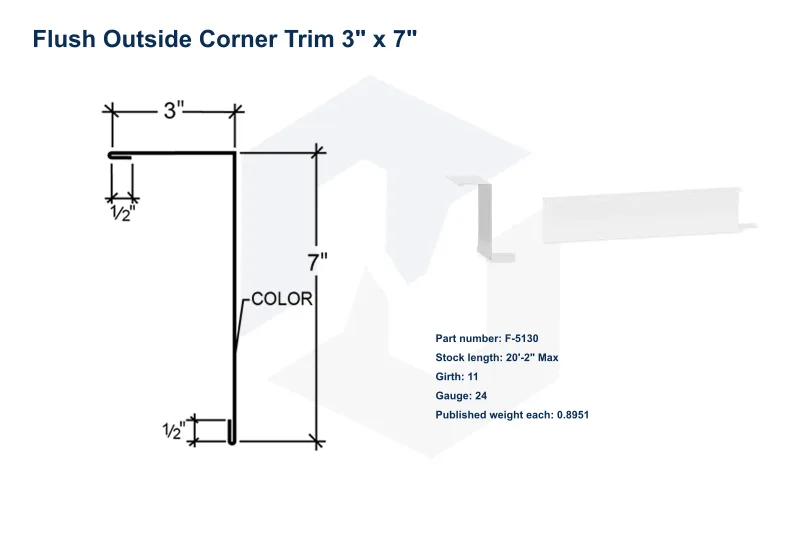

Reference part: F-5130. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-5130	20'-2" Max	11	24	0.8951
F-5130	20'-2" Max	11	26	0.7133

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
