Edgecraft Southern Std. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Southern Std. High Eave Trim - Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0726628

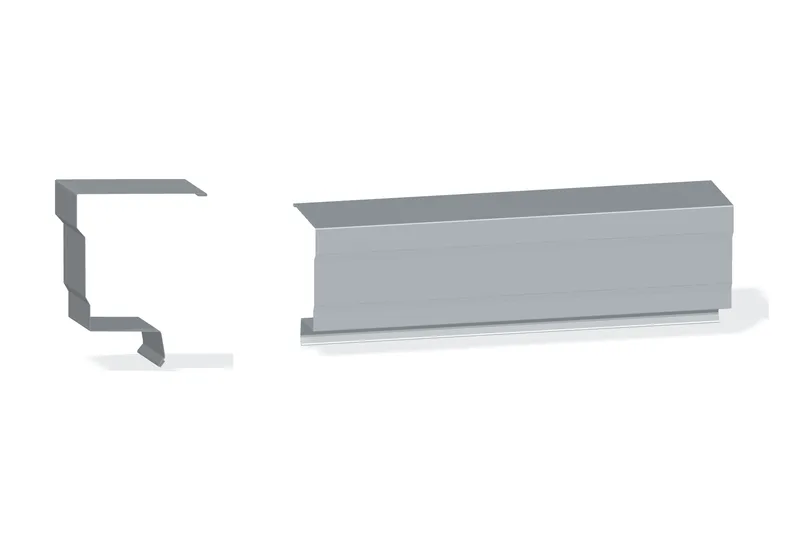

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 22.125; 22.4375; 22.9375; 23.5; 24; 24.5; 25.0625
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6138A | 20'-2" | 22.125 | 24 | 36.3058 |
| F-6138A | 20'-2" | 22.125 | 26 | 28.933 |
| F-6138B | 20'-2" | 22.4375 | 24 | 36.8186 |
| F-6138B | 20'-2" | 22.4375 | 26 | 29.3417 |
| F-6138C | 20'-2" | 22.9375 | 24 | 37.6391 |
| F-6138C | 20'-2" | 22.9375 | 26 | 29.9955 |
| F-6138D | 20'-2" | 23.5 | 24 | 38.5621 |
| F-6138D | 20'-2" | 23.5 | 26 | 30.7311 |
| F-6138E | 20'-2" | 24 | 24 | 39.3826 |
| F-6138E | 20'-2" | 24 | 26 | 31.385 |
| F-6138F | 20'-2" | 24.5 | 24 | 40.2031 |
| F-6138F | 20'-2" | 24.5 | 26 | 32.0388 |
| F-6138G | 20'-2" | 25.0625 | 24 | 41.1261 |
| F-6138G | 20'-2" | 25.0625 | 26 | 32.7744 |
Product resources
Request current drawings and installation instructions for your selected product.

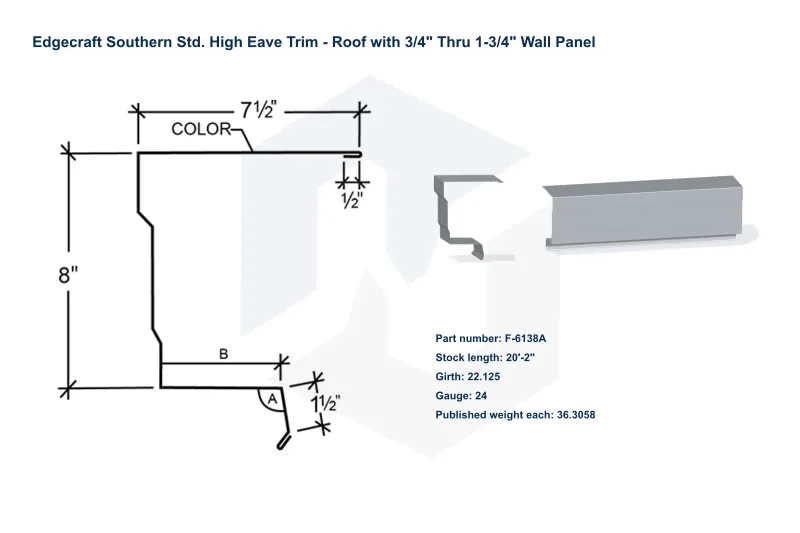

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
