Edgecraft Southern Std. Eave Gutter Expansion Cap - BattenLok HS, SuperLok
0 ratings0 recorded purchasers
Edgecraft Southern Std. Eave Gutter Expansion Cap - BattenLok HS, SuperLok. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish and gauge for your project.
Reference part: 6000-0732675

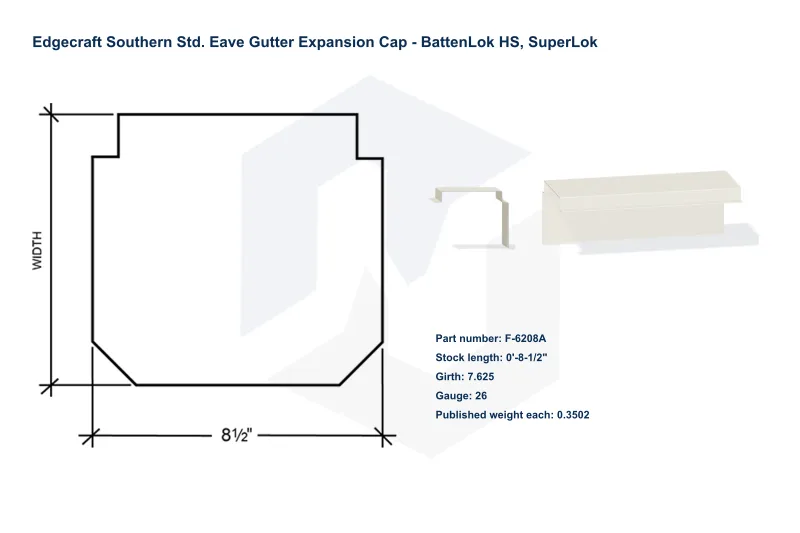

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 0'-8-1/2"
- Published gauges
- 24; 26
- Published girth
- 7.625; 7.875; 8.375; 8.6875; 9.1875; 9.4375; 9.8125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6208A | 0'-8-1/2" | 7.625 | 24 | 0.4395 |
| F-6208A | 0'-8-1/2" | 7.625 | 26 | 0.3502 |
| F-6208B | 0'-8-1/2" | 7.875 | 24 | 0.4539 |
| F-6208B | 0'-8-1/2" | 7.875 | 26 | 0.3617 |
| F-6208C | 0'-8-1/2" | 8.375 | 24 | 0.4827 |
| F-6208C | 0'-8-1/2" | 8.375 | 26 | 0.3847 |
| F-6208D | 0'-8-1/2" | 8.6875 | 24 | 0.5007 |
| F-6208D | 0'-8-1/2" | 8.6875 | 26 | 0.399 |
| F-6208E | 0'-8-1/2" | 9.1875 | 24 | 0.5295 |
| F-6208E | 0'-8-1/2" | 9.1875 | 26 | 0.422 |
| F-6208F | 0'-8-1/2" | 9.4375 | 24 | 0.5439 |
| F-6208F | 0'-8-1/2" | 9.4375 | 26 | 0.4335 |
| F-6208G | 0'-8-1/2" | 9.8125 | 24 | 0.5656 |
| F-6208G | 0'-8-1/2" | 9.8125 | 26 | 0.4507 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
