TRIM CATALOG · Edgecraft Trim

Edgecraft Northern Std. Rake Trim - PBR Roof 3/4" Thru 3" From Steel Line with 3/4" Thru 1-3/4" Wall Panel

0 / 5

0 ratings0 recorded purchasers

Edgecraft Northern Std. Rake Trim - PBR Roof 3/4" Thru 3" From Steel Line with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.

Part: 6000-0725601

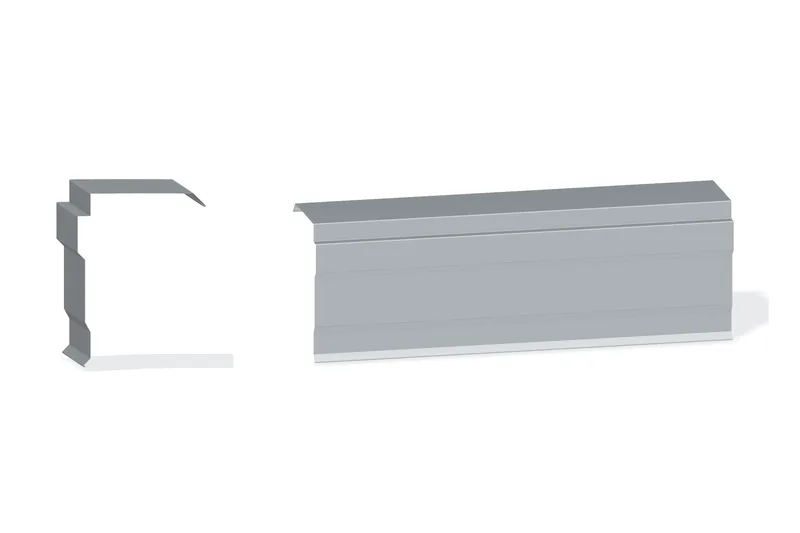

Edgecraft Northern Std. Rake Trim - PBR Roof 3/4" Thru 3" From Steel Line with 3/4" Thru 1-3/4" Wall Panel — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Standard Length

Thickness

Strippable Film

Embossed

Price for selected quantity$108.05/1 piece

per piece

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2"
Published gauges: 24; 26
Published girth: 18.625
Published weight per piece: 30.5625; 24.3561

Supplier specifications

Selected part: F-6152. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-6152	20'-2"	18.625	24	30.5625
F-6152	20'-2"	18.625	26	24.3561

Product resources

Request current drawings and installation instructions for your selected product.

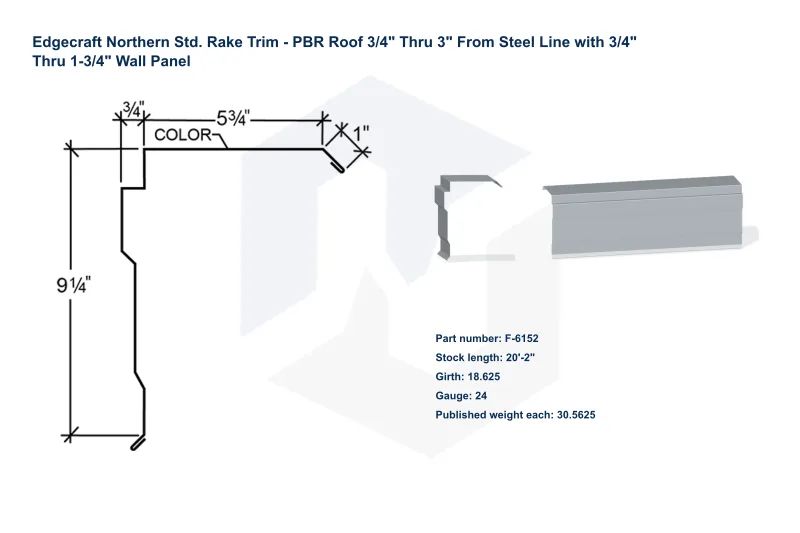

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
