Edgecraft Northern Std. Mitered High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Northern Std. Mitered High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0743834

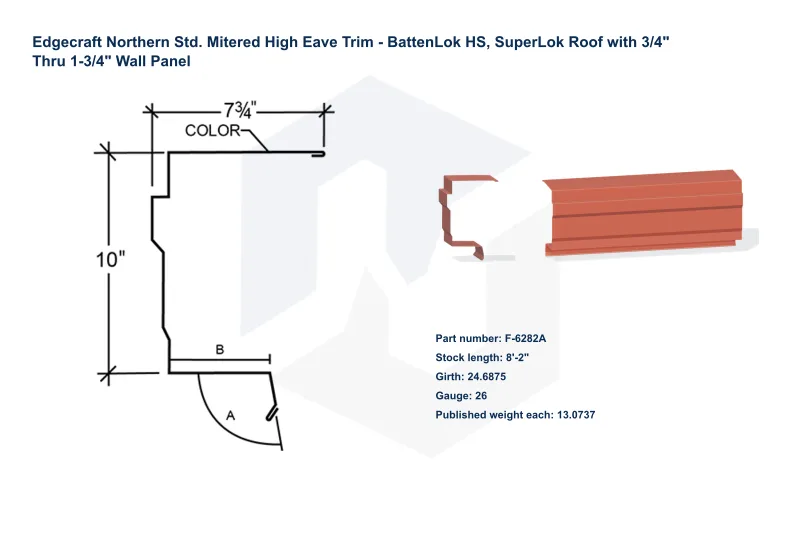

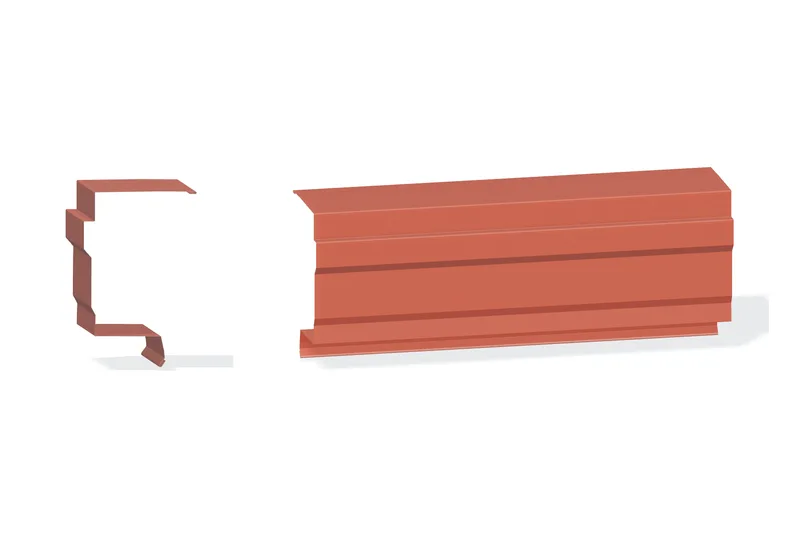

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 24.6875; 25; 25.625; 26.3125; 26.9375; 27.5625; 28.1875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6282A | 8'-2" | 24.6875 | 24 | 16.4052 |
| F-6282A | 8'-2" | 24.6875 | 26 | 13.0737 |
| F-6282B | 8'-2" | 25 | 24 | 16.6128 |
| F-6282B | 8'-2" | 25 | 26 | 13.2392 |
| F-6282C | 8'-2" | 25.625 | 24 | 17.0282 |
| F-6282C | 8'-2" | 25.625 | 26 | 13.5702 |
| F-6282D | 8'-2" | 26.3125 | 24 | 17.485 |
| F-6282D | 8'-2" | 26.3125 | 26 | 13.9342 |
| F-6282E | 8'-2" | 26.9375 | 24 | 17.9003 |
| F-6282E | 8'-2" | 26.9375 | 26 | 14.2652 |
| F-6282F | 8'-2" | 27.5625 | 24 | 18.3157 |
| F-6282F | 8'-2" | 27.5625 | 26 | 14.5962 |
| F-6282G | 8'-2" | 28.1875 | 24 | 18.731 |
| F-6282G | 8'-2" | 28.1875 | 26 | 14.9272 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
