Edgecraft Northern Std. High Eave Trim - PBR Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Northern Std. High Eave Trim - PBR Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1115434

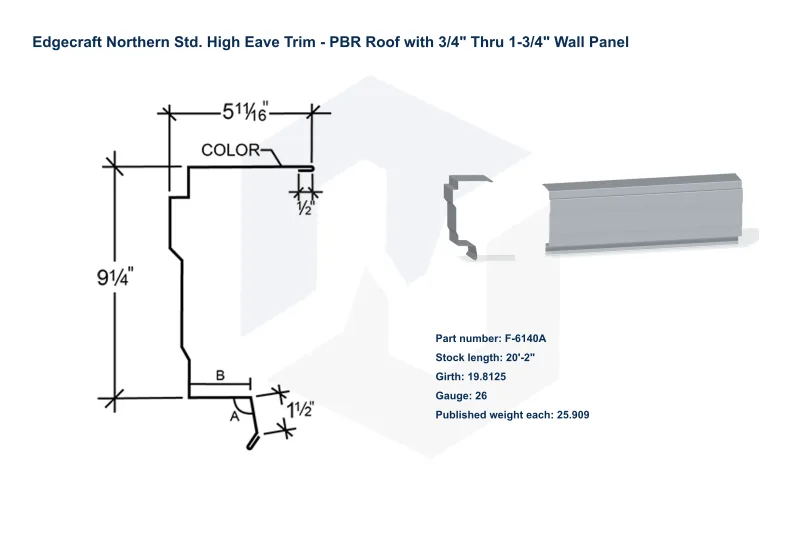

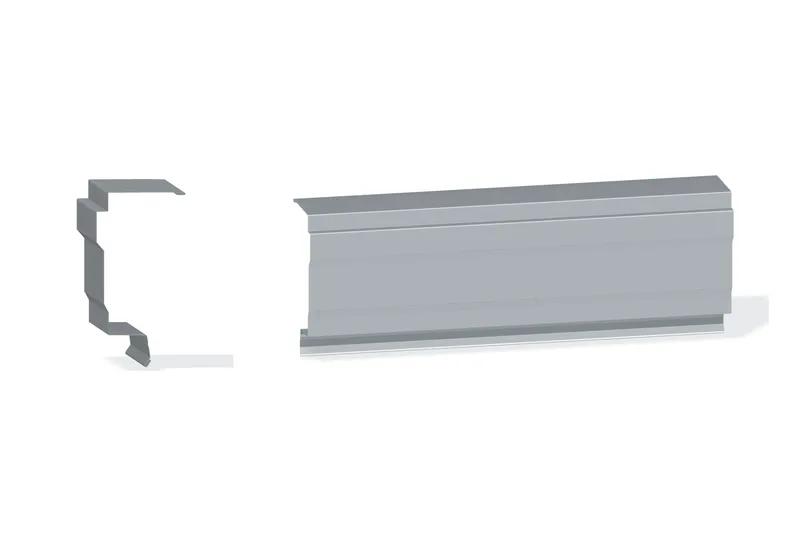

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 19.8125; 20.125; 20.8125; 21.4375; 22.0625; 22.6875; 23.3125
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6140A | 20'-2" | 19.8125 | 24 | 32.5112 |
| F-6140A | 20'-2" | 19.8125 | 26 | 25.909 |
| F-6140B | 20'-2" | 20.125 | 24 | 33.0239 |
| F-6140B | 20'-2" | 20.125 | 26 | 26.3176 |
| F-6140C | 20'-2" | 20.8125 | 24 | 34.1521 |
| F-6140C | 20'-2" | 20.8125 | 26 | 27.2167 |
| F-6140D | 20'-2" | 21.4375 | 24 | 35.1777 |
| F-6140D | 20'-2" | 21.4375 | 26 | 28.034 |
| F-6140E | 20'-2" | 22.0625 | 24 | 36.2033 |
| F-6140E | 20'-2" | 22.0625 | 26 | 28.8513 |
| F-6140F | 20'-2" | 22.6875 | 24 | 37.2289 |
| F-6140F | 20'-2" | 22.6875 | 26 | 29.6686 |
| F-6140G | 20'-2" | 23.3125 | 24 | 38.2544 |
| F-6140G | 20'-2" | 23.3125 | 26 | 30.4859 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
