Edgecraft Northern Std. High Eave Trim - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Northern Std. High Eave Trim - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0728197

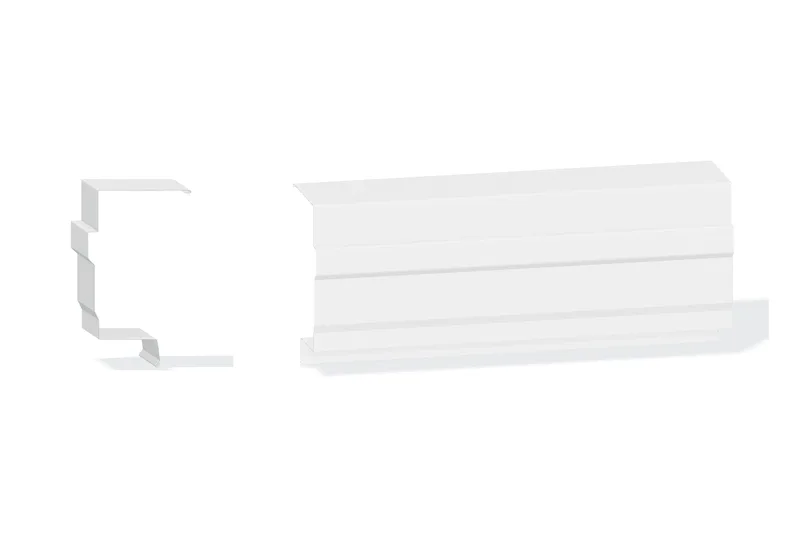

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 25.1875; 25.5; 26.125; 26.8125; 27.4375; 28.0625; 28.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6540A | 20'-2" | 25.1875 | 24 | 41.3312 |
| F-6540A | 20'-2" | 25.1875 | 26 | 32.9379 |
| F-6540B | 20'-2" | 25.5 | 24 | 41.844 |
| F-6540B | 20'-2" | 25.5 | 26 | 33.3465 |
| F-6540C | 20'-2" | 26.125 | 24 | 42.8696 |
| F-6540C | 20'-2" | 26.125 | 26 | 34.1639 |
| F-6540D | 20'-2" | 26.8125 | 24 | 43.9977 |
| F-6540D | 20'-2" | 26.8125 | 26 | 35.0629 |
| F-6540E | 20'-2" | 27.4375 | 24 | 45.0233 |
| F-6540E | 20'-2" | 27.4375 | 26 | 35.8802 |
| F-6540F | 20'-2" | 28.0625 | 24 | 46.0489 |
| F-6540F | 20'-2" | 28.0625 | 26 | 36.6975 |
| F-6540G | 20'-2" | 28.6875 | 24 | 47.0745 |
| F-6540G | 20'-2" | 28.6875 | 26 | 37.5149 |
Product resources
Request current drawings and installation instructions for your selected product.

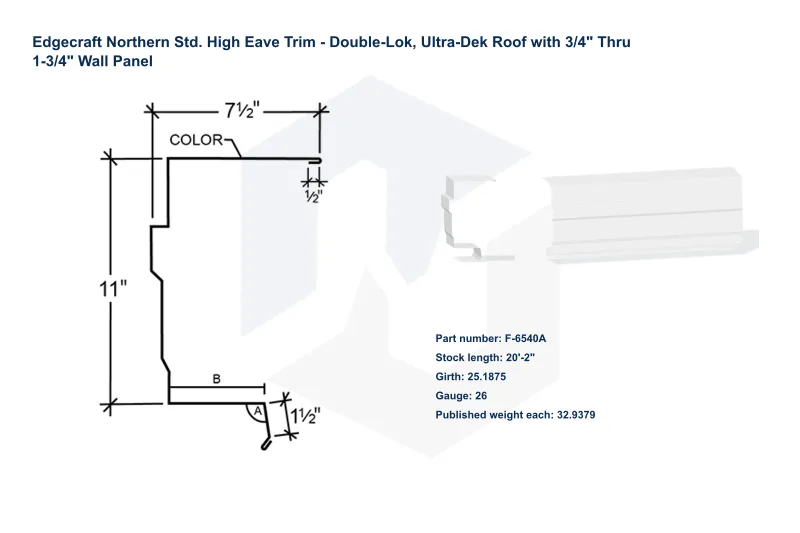

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
