Edgecraft Northern Std. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel
Edgecraft Northern Std. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0740095

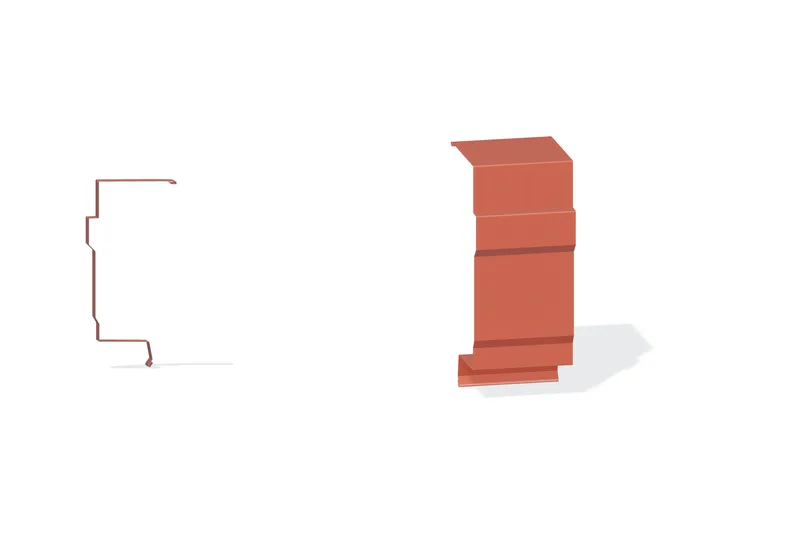

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 25.4375; 25.75; 26.375; 27.0625; 27.6875; 28.3125; 28.3975
A published F-6507 profile drawing is unavailable. Related F-6508 artwork is a visual reference only and does not establish F-6507 profile dimensions.
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6507A | 0'-6" | 25.4375 | 24 | 1.0349 |
| F-6507A | 0'-6" | 25.4375 | 26 | 0.8247 |
| F-6507B | 0'-6" | 25.75 | 24 | 1.0476 |
| F-6507B | 0'-6" | 25.75 | 26 | 0.8349 |
| F-6507C | 0'-6" | 26.375 | 24 | 1.0731 |
| F-6507C | 0'-6" | 26.375 | 26 | 0.8551 |
| F-6507D | 0'-6" | 27.0625 | 24 | 1.101 |
| F-6507D | 0'-6" | 27.0625 | 26 | 0.8774 |
| F-6507E | 0'-6" | 27.6875 | 24 | 1.1265 |
| F-6507E | 0'-6" | 27.6875 | 26 | 0.8977 |
| F-6507F | 0'-6" | 28.3125 | 24 | 1.1519 |
| F-6507F | 0'-6" | 28.3125 | 26 | 0.918 |
| F-6507G | 0'-6" | 28.3975 | 24 | 1.1553 |
| F-6507G | 0'-6" | 28.3975 | 26 | 0.9207 |
Product resources
Request current drawings and installation instructions for your selected product.
Reference profile based on a related manufacturer drawing and the selected girth. The exact manufacturer drawing is unavailable; confirm the final detail before ordering.
