Edgecraft Northern Std. High Eave Expansion Cover - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel
Edgecraft Northern Std. High Eave Expansion Cover - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0876393

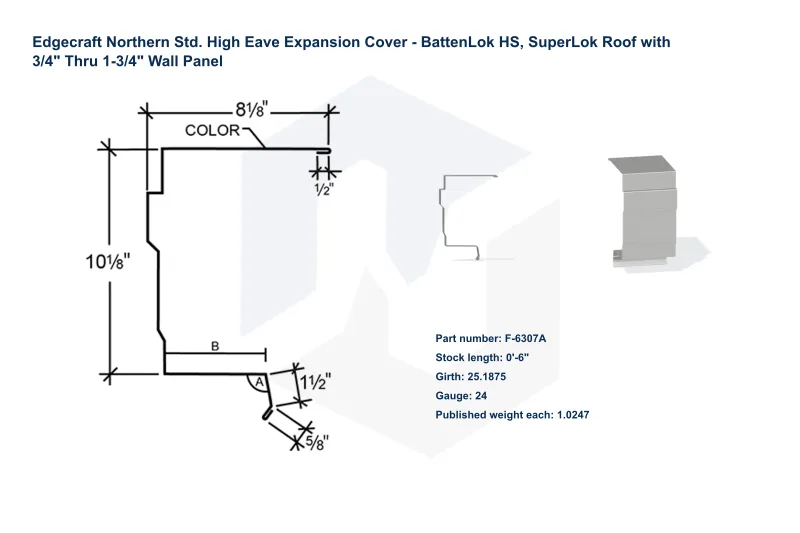

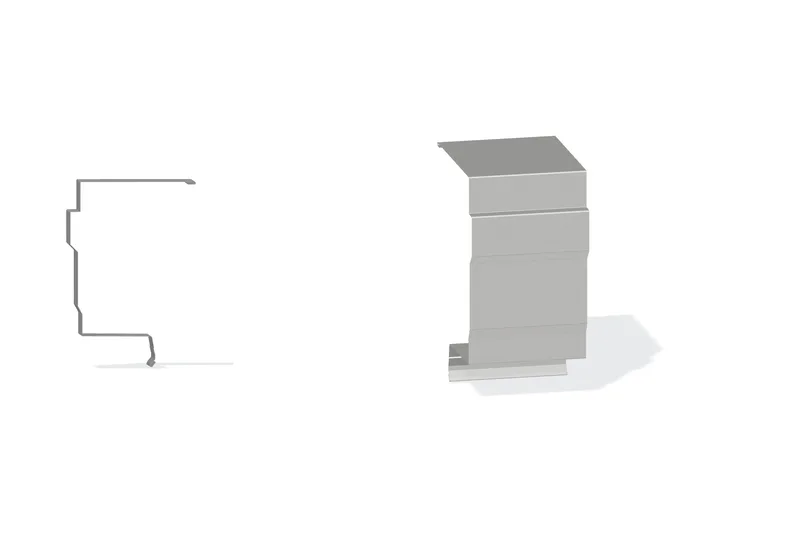

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 25.1875; 25.5; 26.125; 26.8125; 27.4375; 28.0625; 28.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6307A | 0'-6" | 25.1875 | 24 | 1.0247 |
| F-6307A | 0'-6" | 25.1875 | 26 | 0.8166 |
| F-6307B | 0'-6" | 25.5 | 24 | 1.0375 |
| F-6307B | 0'-6" | 25.5 | 26 | 0.8268 |
| F-6307C | 0'-6" | 26.125 | 24 | 1.0629 |
| F-6307C | 0'-6" | 26.125 | 26 | 0.847 |
| F-6307D | 0'-6" | 26.8125 | 24 | 1.0909 |
| F-6307D | 0'-6" | 26.8125 | 26 | 0.8693 |
| F-6307E | 0'-6" | 27.4375 | 24 | 1.1163 |
| F-6307E | 0'-6" | 27.4375 | 26 | 0.8896 |
| F-6307F | 0'-6" | 28.0625 | 24 | 1.1417 |
| F-6307F | 0'-6" | 28.0625 | 26 | 0.9099 |
| F-6307G | 0'-6" | 28.6875 | 24 | 1.1671 |
| F-6307G | 0'-6" | 28.6875 | 26 | 0.9301 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
