Edgecraft Northern Lg. Mitered High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Northern Lg. Mitered High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0839565

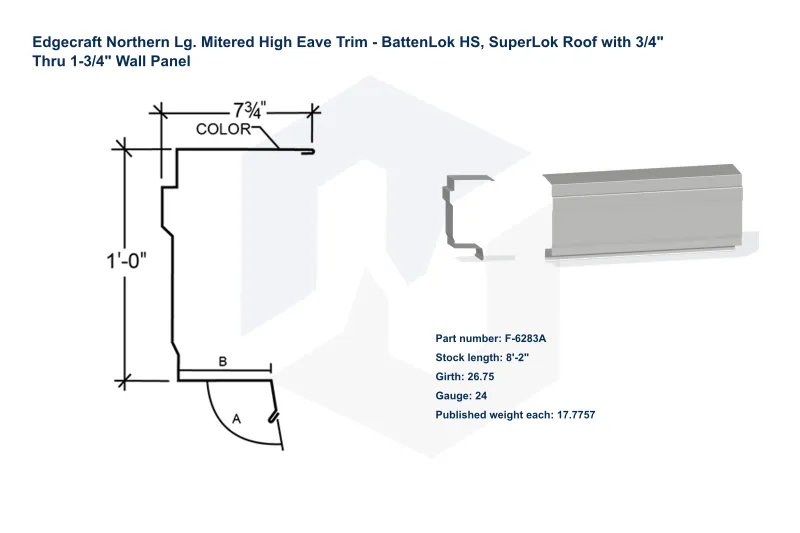

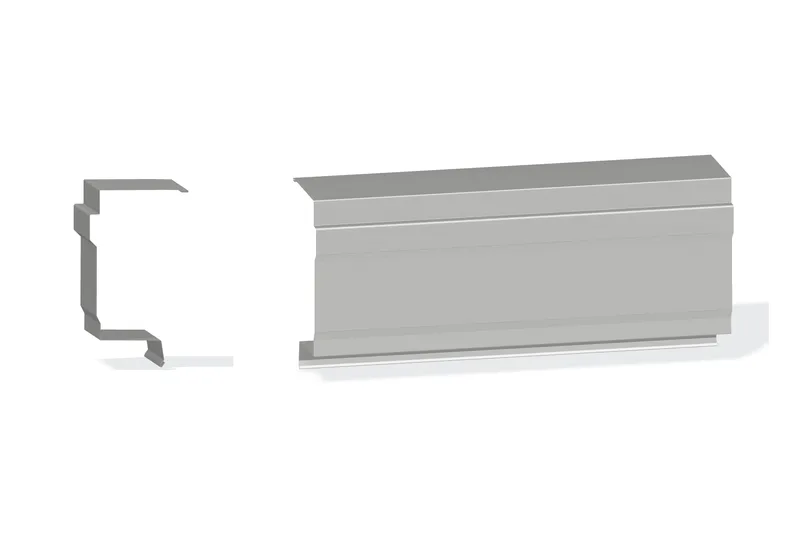

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 8'-2"
- Published gauges
- 24; 26
- Published girth
- 26.75; 27.1875; 28; 28.8125; 29.5625; 30.375; 31.1875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6283A | 8'-2" | 26.75 | 24 | 17.7757 |
| F-6283A | 8'-2" | 26.75 | 26 | 14.1659 |
| F-6283B | 8'-2" | 27.1875 | 24 | 18.0665 |
| F-6283B | 8'-2" | 27.1875 | 26 | 14.3976 |
| F-6283C | 8'-2" | 28 | 24 | 18.6064 |
| F-6283C | 8'-2" | 28 | 26 | 14.8279 |
| F-6283D | 8'-2" | 28.8125 | 24 | 19.1463 |
| F-6283D | 8'-2" | 28.8125 | 26 | 15.2582 |
| F-6283E | 8'-2" | 29.5625 | 24 | 19.6447 |
| F-6283E | 8'-2" | 29.5625 | 26 | 15.6553 |
| F-6283F | 8'-2" | 30.375 | 24 | 20.1846 |
| F-6283F | 8'-2" | 30.375 | 26 | 16.0856 |
| F-6283G | 8'-2" | 31.1875 | 24 | 20.7245 |
| F-6283G | 8'-2" | 31.1875 | 26 | 16.5159 |
Product resources
Request current drawings and installation instructions for your selected product.
Supported dimensions update the preview. Confirm final fabrication details before ordering.
