Edgecraft Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel
0 ratings0 recorded purchasers
Edgecraft Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0870450

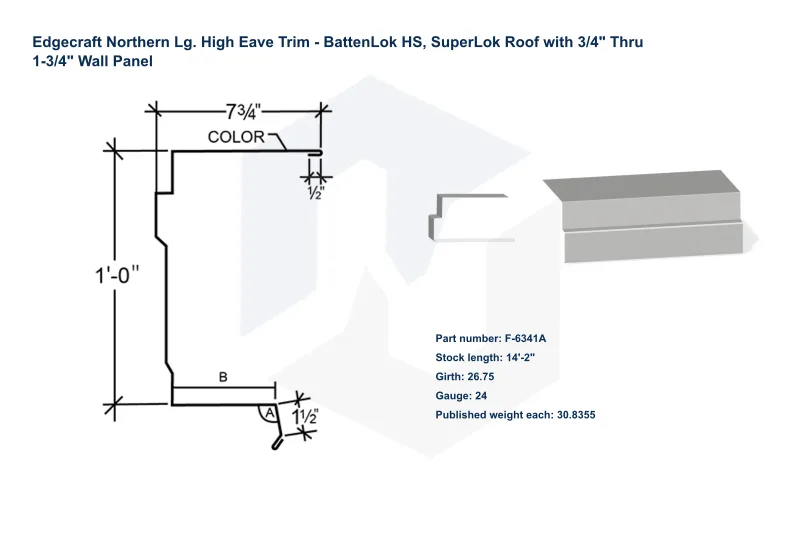

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 14'-2"
- Published gauges
- 24; 26
- Published girth
- 26.75; 27.1875; 28; 28.8125; 29.5625; 30.375; 31.1875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6341A | 14'-2" | 26.75 | 24 | 30.8355 |
| F-6341A | 14'-2" | 26.75 | 26 | 24.5736 |
| F-6341B | 14'-2" | 27.1875 | 24 | 31.3398 |
| F-6341B | 14'-2" | 27.1875 | 26 | 24.9755 |
| F-6341C | 14'-2" | 28 | 24 | 32.2764 |
| F-6341C | 14'-2" | 28 | 26 | 25.7219 |
| F-6341D | 14'-2" | 28.8125 | 24 | 33.213 |
| F-6341D | 14'-2" | 28.8125 | 26 | 26.4682 |
| F-6341E | 14'-2" | 29.5625 | 24 | 34.0775 |
| F-6341E | 14'-2" | 29.5625 | 26 | 27.1572 |
| F-6341F | 14'-2" | 30.375 | 24 | 35.0141 |
| F-6341F | 14'-2" | 30.375 | 26 | 27.9036 |
| F-6341G | 14'-2" | 31.1875 | 24 | 35.9507 |
| F-6341G | 14'-2" | 31.1875 | 26 | 28.65 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
