Edgecraft Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3"
0 ratings0 recorded purchasers
Edgecraft Northern Lg. High Eave Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3". Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0860586

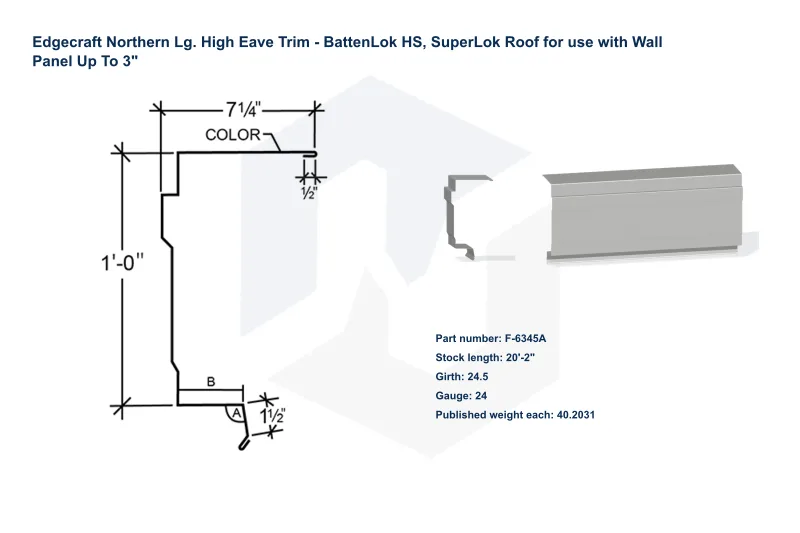

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Custom request · price to confirmOn confirmation
Pricing to confirm
Published product details
- Published lengths
- 20'-2"
- Published gauges
- 24; 26
- Published girth
- 24.5; 24.9375; 25.6875; 26.5; 27.25; 28; 28.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6345A | 20'-2" | 24.5 | 24 | 40.2031 |
| F-6345A | 20'-2" | 24.5 | 26 | 32.0388 |
| F-6345B | 20'-2" | 24.9375 | 24 | 40.921 |
| F-6345B | 20'-2" | 24.9375 | 26 | 32.611 |
| F-6345C | 20'-2" | 25.6875 | 24 | 42.1517 |
| F-6345C | 20'-2" | 25.6875 | 26 | 33.5917 |
| F-6345D | 20'-2" | 26.5 | 24 | 43.4849 |
| F-6345D | 20'-2" | 26.5 | 26 | 34.6542 |
| F-6345E | 20'-2" | 27.25 | 24 | 44.7157 |
| F-6345E | 20'-2" | 27.25 | 26 | 35.635 |
| F-6345F | 20'-2" | 28 | 24 | 45.9464 |
| F-6345F | 20'-2" | 28 | 26 | 36.6158 |
| F-6345G | 20'-2" | 28.6875 | 24 | 47.0745 |
| F-6345G | 20'-2" | 28.6875 | 26 | 37.5149 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
