Edgecraft Northern Lg. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel
Edgecraft Northern Lg. High Eave Expansion Cover - Double-Lok, Ultra-Dek Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-0814285

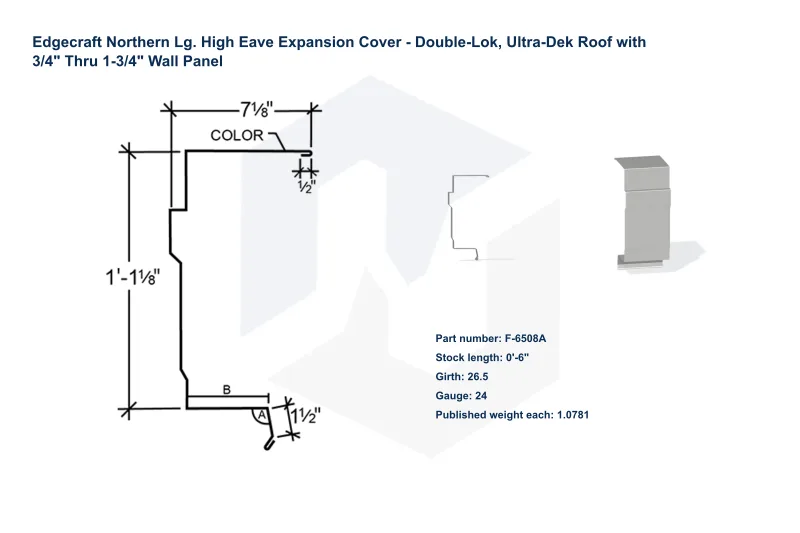

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 26.5; 26.9375; 27.75; 28.5625; 29.3125; 29.9375; 30.875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6508A | 0'-6" | 26.5 | 24 | 1.0781 |
| F-6508A | 0'-6" | 26.5 | 26 | 0.8592 |
| F-6508B | 0'-6" | 26.9375 | 24 | 1.0959 |
| F-6508B | 0'-6" | 26.9375 | 26 | 0.8734 |
| F-6508C | 0'-6" | 27.75 | 24 | 1.129 |
| F-6508C | 0'-6" | 27.75 | 26 | 0.8997 |
| F-6508D | 0'-6" | 28.5625 | 24 | 1.1621 |
| F-6508D | 0'-6" | 28.5625 | 26 | 0.9261 |
| F-6508E | 0'-6" | 29.3125 | 24 | 1.1926 |
| F-6508E | 0'-6" | 29.3125 | 26 | 0.9504 |
| F-6508F | 0'-6" | 29.9375 | 24 | 1.218 |
| F-6508F | 0'-6" | 29.9375 | 26 | 0.9706 |
| F-6508G | 0'-6" | 30.875 | 24 | 1.2561 |
| F-6508G | 0'-6" | 30.875 | 26 | 1.001 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
