Edgecraft Northern Lg. High Eave Expansion Cover - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel
Edgecraft Northern Lg. High Eave Expansion Cover - BattenLok HS, SuperLok Roof with 3/4" Thru 1-3/4" Wall Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Reference part: 6000-1058586

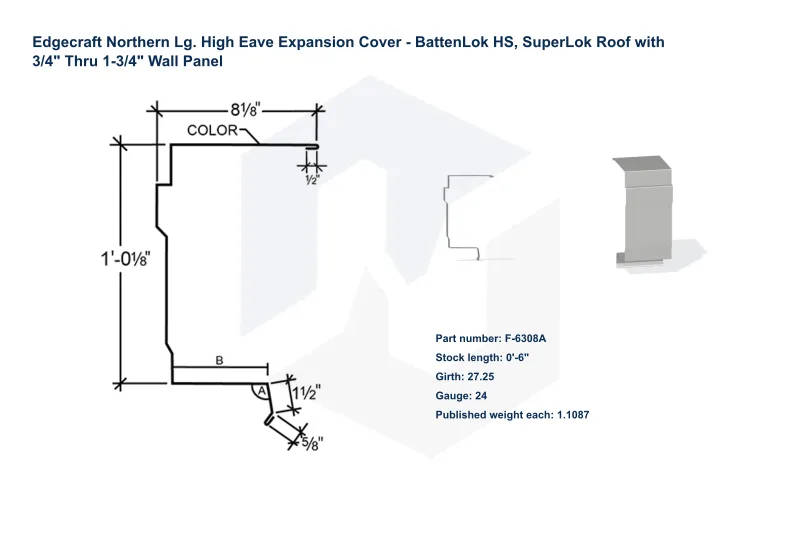

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 0'-6"
- Published gauges
- 24; 26
- Published girth
- 27.25; 27.6875; 28.5; 29.3125; 30.0625; 30.875; 31.6875
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| F-6308A | 0'-6" | 27.25 | 24 | 1.1087 |
| F-6308A | 0'-6" | 27.25 | 26 | 0.8835 |
| F-6308B | 0'-6" | 27.6875 | 24 | 1.1265 |
| F-6308B | 0'-6" | 27.6875 | 26 | 0.8977 |
| F-6308C | 0'-6" | 28.5 | 24 | 1.1595 |
| F-6308C | 0'-6" | 28.5 | 26 | 0.924 |
| F-6308D | 0'-6" | 29.3125 | 24 | 1.1926 |
| F-6308D | 0'-6" | 29.3125 | 26 | 0.9504 |
| F-6308E | 0'-6" | 30.0625 | 24 | 1.2231 |
| F-6308E | 0'-6" | 30.0625 | 26 | 0.9747 |
| F-6308F | 0'-6" | 30.875 | 24 | 1.2561 |
| F-6308F | 0'-6" | 30.875 | 26 | 1.001 |
| F-6308G | 0'-6" | 31.6875 | 24 | 1.2892 |
| F-6308G | 0'-6" | 31.6875 | 26 | 1.0274 |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
