TRIM CATALOG · Edgecraft Trim

Edgecraft Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3"

0 / 5

0 ratings0 recorded purchasers

Edgecraft Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3". Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.

Part: 6000-0740066

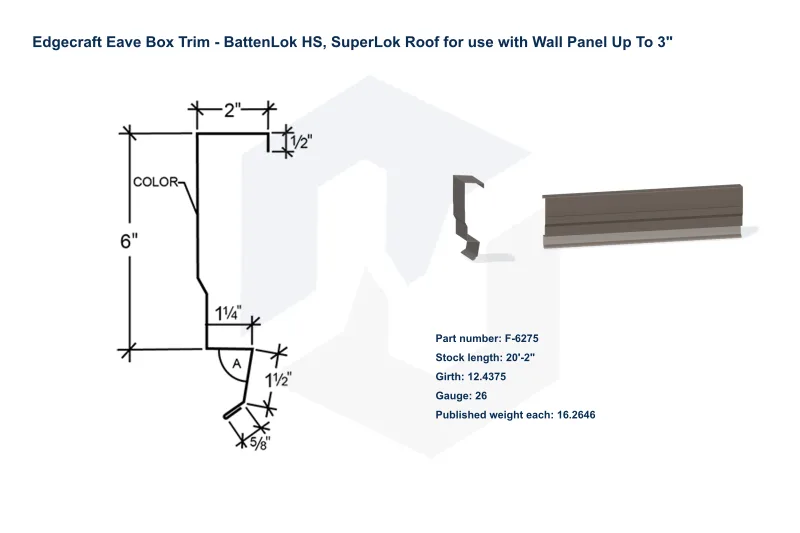

Edgecraft Eave Box Trim - BattenLok HS, SuperLok Roof for use with Wall Panel Up To 3" — Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.

PRODUCT OPTIONS

Configure this product

Choose specifications for your supply list.

Color

Standard Length

Thickness

Measurement Type

Roof Slope

Strippable Film

Embossed

Roof angle (degrees) — alternative to slopeInactive: Slope method selected.

Price for selected quantity$71.14/1 piece

per piece

Price recorded

Requested quantity

Published product details

Published lengths: 20'-2"
Published gauges: 24; 26
Published girth: 12.4375
Published weight per piece: 20.4092; 16.2646

Supplier specifications

Selected part: F-6275. Confirm units for dimensions and weights before ordering.
Part #	Length	Girth	Gauge	Weight Each
F-6275	20'-2"	12.4375	24	20.4092
F-6275	20'-2"	12.4375	26	16.2646

Product resources

Request current drawings and installation instructions for your selected product.

Supported dimensions update the preview. Confirm final fabrication details before ordering.
