Craftsman™ Series - Small Batten
Craftsman™ Series - Small Batten. A concealed fastener metal roofing profile for architectural roof designs. Its panel joints form part of the finished roof appearance; coordinate the roof substrate, panel layout, flashing, and attachment details together. Choose color / finish, gauge, width, and texture for your project.
Craftsman_Series_-_Small_Batten

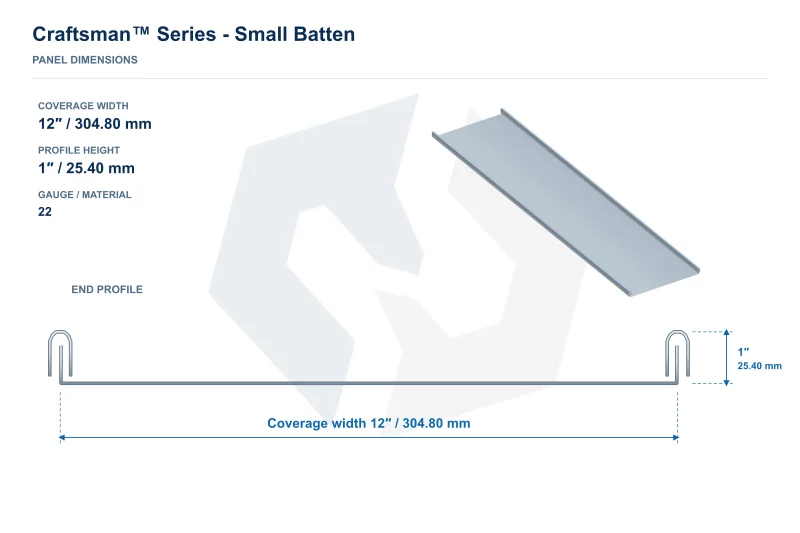

1 / 3 · Product illustration. Refer to the product options for finish and dimensions.
The 3D view illustrates the profile and finish. Confirm the final width, length, and color for your order.
OPTIONS
Configure this panel
Choose specifications for your project.
Color / finish
Galvalume® Plus37 of 37 colors. Scroll to see more.
- Gauge
- 22 GA
- Color
- Galvalume® Plus
- Width
- 12"
- Texture
- Smooth
- Part number
- 10.22.018.SB12
Requested footage estimate at the linear-foot rate. Confirm cuts and the final total before ordering.
Product resources
Request current drawings and installation instructions for your selected product.
Technical documents
Confirm the current document revision and its application to your selected configuration.
- Craftsman Data Sheet Document revision: 0706209991113/RevE/MS/1025.
- CAD (PDF) Craftsman Series - Small Batten : Metal Deck : Panel Profiles or Installation
- CAD (PDF) Craftsman Series - Small Batten : Plywood : Panel Profiles or Installation
