Coordinating Finished Floor Elevation and Site Drainage
Coordinate steel building finished floor elevations with door thresholds, perimeter grades, drainage pathways, and responsible civil design reviews.
Define the condition and its scope

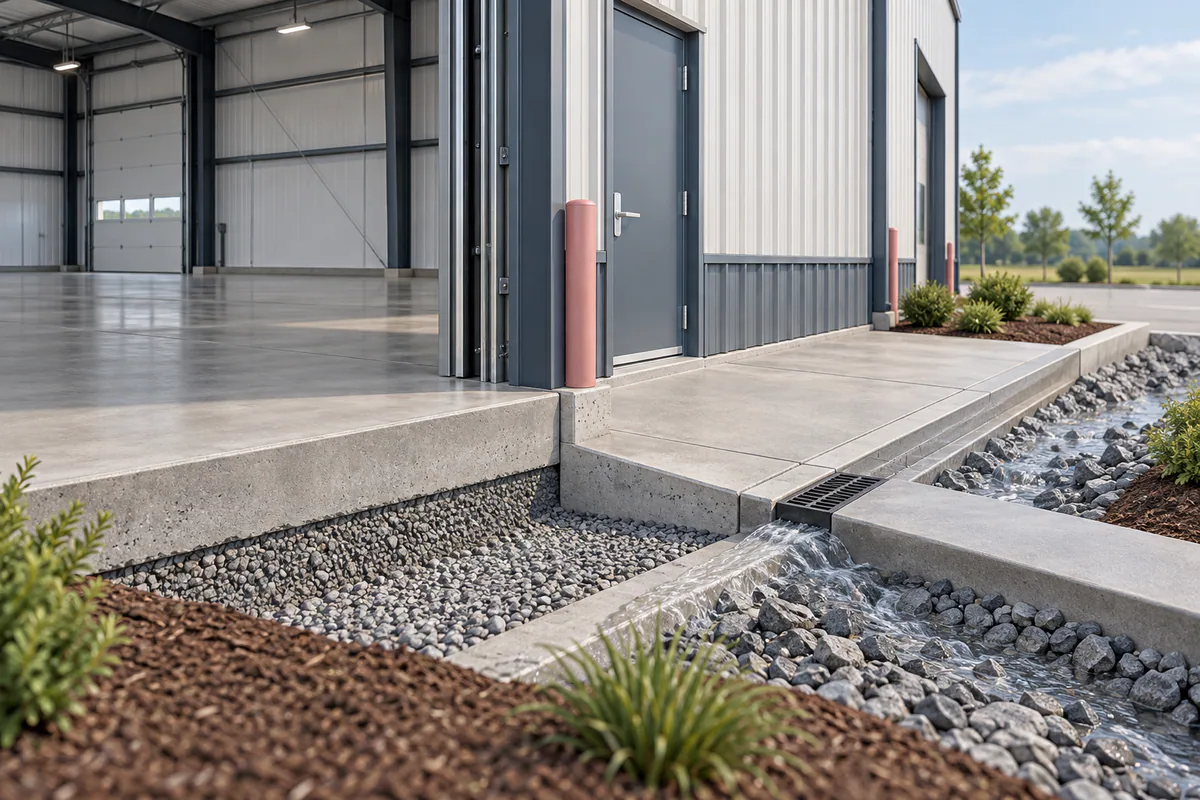

Finished floor elevation connects the building envelope to the civil drainage design.
The site package controls more than the outline of a steel building. Existing grades, drainage paths, utilities, access, soil conditions, and neighboring uses influence what the structural and enclosure teams can detail. Field conditions should be tied to a dated survey or investigation with its stated limits. Describe what is known, what is inferred, and what still needs testing. Give civil, geotechnical, structural, and construction participants the same property and building coordinates before they develop work that cannot easily be moved later.
References: Stormwater discharges from construction activities · Project Planning Guide
Gather the inputs before deciding
Compare the proposed floor elevation with exterior grades, door thresholds, loading approaches, and accessible routes on the same datum. Identify runoff paths and the civil discharge design. Ask the responsible reviewers to resolve local changes that affect drainage or access. A threshold chosen for equipment convenience can alter adjoining conditions. Keep supplier dimensions tied to accepted elevations rather than an isolated finished-floor note.
- Proposed finished floor datum
- Door and access thresholds
- Perimeter grading plan
- Reviewed drainage pathways
References: Stormwater discharges from construction activities · Project Planning Guide
Set observable handoff deliverables
A local threshold adjustment can redirect water or disrupt the adjoining access condition.
| Input | Evidence to keep with it | Review status |
|---|---|---|
| Proposed finished floor datum | Common elevation reference | Identify reviewer and written decision |
| Door and access thresholds | Coordinated threshold sections | Identify reviewer and written decision |
| Perimeter grading plan | Accepted grading and drainage detail | Identify reviewer and written decision |
Sequence review and release
Overlay building entrances on the current grading plan and prepare sections at differing thresholds. Review conflicts with civil, door, and enclosure participants. Update floor and perimeter details through the responsible design process before placement. Confirm the field layout uses the coordinated elevation basis. When paving or entrance geometry changes, recheck the water-management interface rather than adjusting one finish independently.
- Locate proposed finished floor datum in the current record.
- Compare door and access thresholds with the table's evidence.
- Document the decision: Accept floor and threshold elevations as a coordinated site interface.
Worked project coordination example
The owner requests a lower loading entrance after grading review. Civil, door, and enclosure participants compare the proposed threshold with drainage and access details before accepting any revised elevation.
Apply the stated release decision to the case: Accept floor and threshold elevations as a coordinated site interface. The responsible team determines acceptance for the actual project and records any condition that still requires resolution.
Keep a closeout record another team can use
Retain coordinated sections, accepted civil references, survey checks, and changes to finished elevations. Record unfinished grading or drainage work as separate obligations even if the shell is complete. Give the owner the final threshold and perimeter information for later paving changes. The handoff should explain the accepted relationship between building and site, without implying a general promise that every storm or drainage condition has been resolved.
For this issue, include accepted grading and drainage detail in the handoff. If review remains pending, identify the dependent work and its owner; do not present the record as a completed technical acceptance.
Common questions
Can the door installer set threshold elevations alone?
No. Coordinate the resulting civil, access, and enclosure conditions.
How should proposed finished floor datum be documented?
Accept floor and threshold elevations as a coordinated site interface. Retain common elevation reference and check that the decision reached the team performing the dependent work.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Stormwater discharges from construction activities U.S. Environmental Protection Agency
- Project Planning Guide U.S. General Services Administration / WBDG
