Steel Base Plates and Anchor Coordination
Coordinate steel base plates and concrete anchors with consistent layout references, product records, field observations, and clear change control.

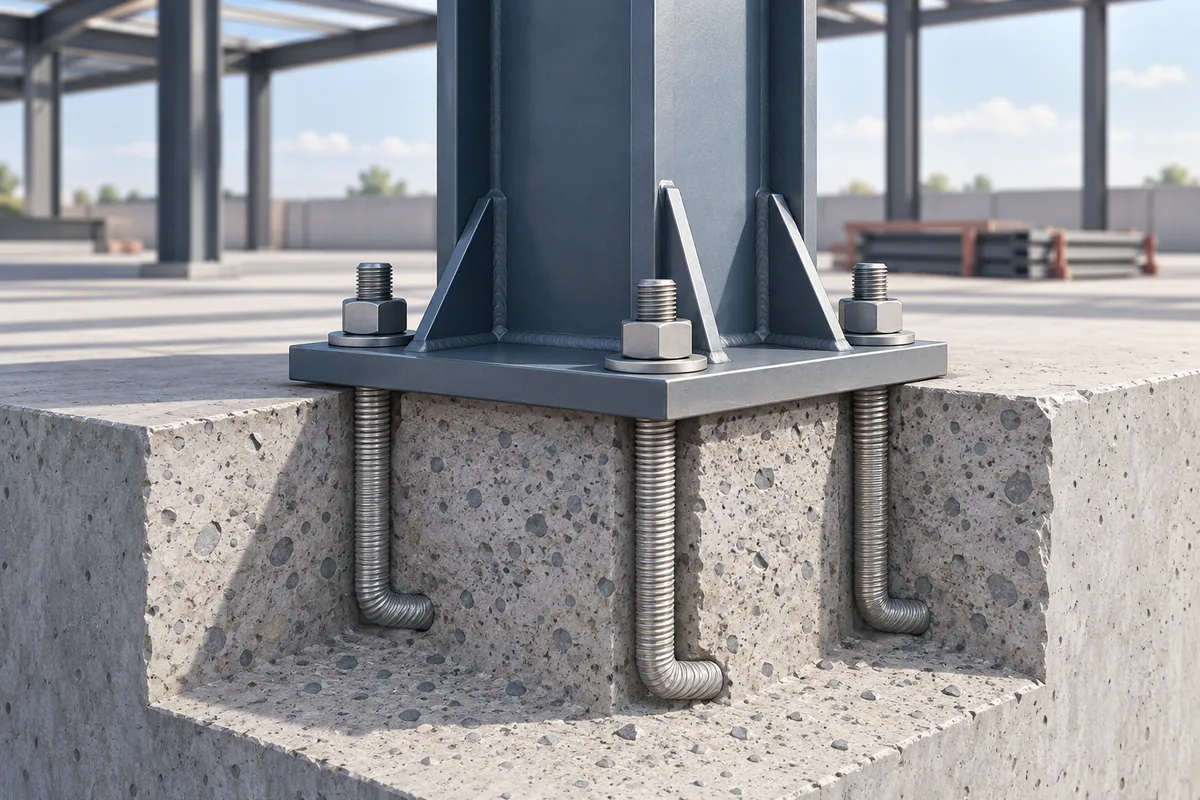

Bring the steel and concrete information together
A base-plate coordination review should place the steel connection detail beside the foundation or supporting-concrete information. Identify the common location, orientation, elevation reference, and current revisions. A plate drawing and an anchor layout can each appear clear while referring to different assumptions.
Create a short coordination record naming who supplies each component and who resolves discrepancies. Include the base plate, anchors, nuts, washers, and any specified supporting or bedding arrangement. Do not leave an item unassigned because it appears on more than one trade's drawing.
Keep anchor types and requirements explicit
Anchorage may use cast-in or post-installed systems with different mechanisms and installation requirements. Hilti's anchor overview distinguishes these systems, while its technical guides provide product-specific design and installation references.
Retain the exact accepted anchor identification in the coordination record. A note reading anchor bolts is too broad to control a substitution or a field correction. If the design names a complete system, keep its associated components and instructions together rather than splitting them into unrelated generic purchase lines.
References: Mechanical and adhesive anchor mechanisms · Product technical guides for anchoring and fastening
Use one set of reference information
The following checklist helps organize a coordination meeting. It does not establish design dimensions, erection requirements, or permissible construction tolerances.
| Topic | Compare | Resolve before release |
|---|---|---|
| Location | Grid, centerline, orientation, and datum | Conflicting drawing references |
| Anchor arrangement | Accepted layout and plate-hole arrangement | Unexplained mismatches |
| Vertical relationship | Specified elevations, projection, and assembly layers | Missing or inconsistent information |
| Product package | Anchor, nut, washer, and associated components | Unassigned supply responsibilities |
| Field condition | Observed dimensions and concrete condition | Deviations requiring review |
| Acceptance | Required inspection and documented disposition | Open items before dependent work |
Document deviations before changing the hardware
If an anchor is misplaced, short, damaged, or conflicts with the plate, record the actual condition and refer it to the responsible reviewer. Do not infer that bending a rod, enlarging a hole, welding an extension, or replacing an anchor is acceptable merely because it makes the parts fit.
A useful discrepancy package includes the original detail, current fabrication drawing, location photographs, and measured observations with their reference datum. Keep assumptions separate from measurements. Ask for a clear disposition identifying the accepted work, the affected locations, and the required verification afterward.
Example: the plate fits in one orientation only
Imagine that a delivered plate appears to align with the anchors only when rotated from the orientation shown on the steel drawing. Before proceeding, compare the grid references and component identification. Determine whether the issue concerns the plate, the anchor layout, a drawing interpretation, or another coordinated condition.
Send the actual observation to the responsible team with a clear sketch. Do not assume rotation is acceptable because the holes align; other parts of the connection may depend on orientation. Keep the accepted answer with both the field record and the relevant fabrication reference so the resolution is not lost between teams.
- Confirm shared location and elevation references.
- Check complete product and supply responsibilities.
- Document actual deviations before alteration.
- Close the item with the accepted instruction and verification.
Make the handoff usable for later work
After acceptance, retain a location-based record of the installed anchorage and any approved deviations. Identify which drawings remain current and which have been superseded. This matters when later equipment, cladding, or maintenance work approaches the same connection. A future reviewer should be able to find the installed arrangement without reconstructing several months of emails or mistaking an early fabrication issue for the final condition.
Common questions
Can I enlarge a base-plate hole to solve misalignment?
Only through the appropriate design and fabrication review. Hole changes can affect the complete connection and associated components, so fitting the plate is not the sole acceptance criterion.
Does matching the anchor diameter prove a replacement is acceptable?
No. The exact anchor system, material, geometry, base material, and design requirements must be reviewed together.
