Steel Angles and Channels: Selection and Ordering Guide
Compare steel angles and channels by section, thickness, finish, cut length, and connection detail before ordering metal building components.
Start with the member's assigned job

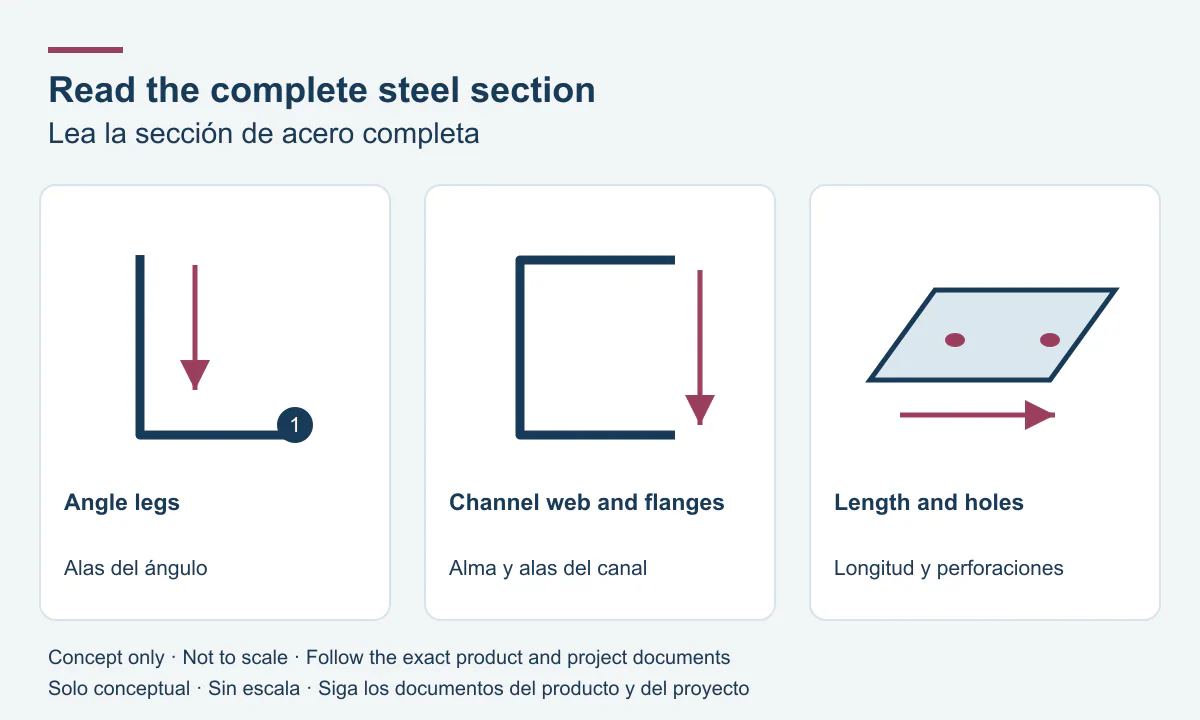

An angle has two legs meeting at a corner; a channel has a web between two flanges. Those simple outlines help identify a part, but the project detail determines its job. A buyer may be sourcing an edge member, an opening component, or a connection piece. Record that location and drawing reference before choosing a catalog size. The word structural in a category heading does not approve every listed shape for every support condition.
Keep formed catalog components separate from hot-rolled shapes specified elsewhere in the project. When a drawing and a product description use different naming conventions, ask the designer to identify the intended section and material rather than selecting by a similar photograph.
References: QuickStart Guide: metal building components and system coordination
Read the section and finish together
MBCI lists equal-leg and unequal-leg angles and publishes channels in separate size tables. Its references distinguish gauge, finish, weight, and length. Use that information to identify the ordered product, not as a span or load table. For an unequal-leg angle, show which leg connects to the support. For a channel, show which way its open side faces and where the adjacent material meets it.
| Component | Identify on the request | Question to resolve |
|---|---|---|
| Equal-leg angle | Both leg dimensions, thickness, finish | Does the connection match the approved leg orientation? |
| Unequal-leg angle | Each leg dimension and installed orientation | Which leg receives the specified attachments? |
| Channel | Web depth, flange width, thickness, open-side orientation | Does the complete section match the detail? |
References: Structural angles: section, gauge, finish, and length references · Channels: section dimensions and product references
Reconcile thickness and connection information
Write the manufacturer designation and the specified thickness basis together. Do not assume two suppliers use gauge labels identically. The design team must resolve a different thickness, steel specification, section geometry, or coating before it becomes a substitution. A heavier catalog weight alone does not prove a replacement is suitable.
List the attachment components separately. Include the detail reference for holes, bolts, screws, welding, and support interfaces as applicable. A plain material length does not automatically include punching, fabrication, fasteners, or connection design. Ask which of those operations the supplier will actually perform, and keep unconfirmed work visibly open in the request.
Prepare a piece-based order checklist
Separate the finished piece schedule from purchasing and billing units. The supplier needs the actual cut length and quantity for each piece mark, even when a quote is expressed by footage. Keep any requested spare material separate from the net drawing quantity. A delivery weight or nominal stock length should not silently replace the reviewed fabrication length.
- Record project location, drawing revision, piece mark, section, and quantity.
- Specify finish and any required coating repair or final coating scope.
- Identify finished cut lengths and who provides cuts, holes, or other fabrication.
- Attach the applicable connection detail and list unresolved substitutions.
- Ask the supplier to confirm the offered configuration and current commercial terms.
Work through a common selection mismatch
A takeoff calls for a channel, but a quotation returns a Cee of similar depth. Put the two section drawings beside the original detail. Compare flanges, lips, thickness, material specification, holes, and attachment faces. Send the proposed difference to the responsible reviewer. Do not treat the word channel as proof that the quoted lipped C section is the specified unlipped component.
If the reviewer accepts a substitute, update the piece schedule and connected details before release. If the original shape remains required, have the quotation corrected. That written decision helps receiving staff recognize which product was actually approved.
Receive material against the released schedule
Check section labels, finish, quantities, lengths, visible damage, and piece marks against the accepted order. Keep a questionable or unidentified bundle separate while its status is resolved. Photographs can help explain a mismatch, but they do not establish material grade or an engineered connection. Preserve supplier documents and approved changes with the final piece list so later repairs or additions can identify what was installed.
Common questions
Can an angle replace a channel of similar depth?
Only through project-specific review. Section shape, orientation, connections, material, and the assigned structural duty must be checked together.
Does a published piece weight establish load capacity?
No. A weight table identifies material weight for the listed product; it does not supply allowable spans, connection resistance, or project design approval.
Is a red oxide finish a complete coating specification?
The color name alone is insufficient. Confirm the actual coating product, required exposure protection, and any field repair or final finish with the project documents and supplier.
