Angle
Angle. A steel framing profile for metal building assembly and connection details. Review the section geometry alongside the supporting members, attachment points, and fabrication details shown in the project drawings. Choose color / finish, gauge, size, and length for your project.
Angle

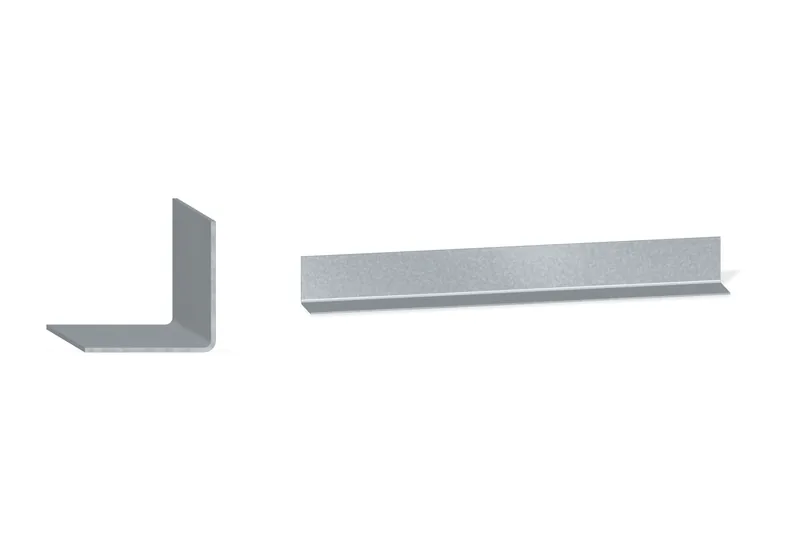

1 / 3 · Original rendered product illustration. The finish and member length shown are representative; refer to the selected product options.
The 3D view illustrates the shape, gauge, and finish. Confirm dimensions, holes, and fabrication details for your order.
OPTIONS
Configure this component
Choose specifications for your project.
Color / finish
Galvanized- Color / finish
- Galvanized
- Gauge
- 14 GA
- Size
- 2" x 2"
- Length
- 20'
- Part number
- 53.14.001.22.20
Estimate for the selected pieces.
Reference price: $39.14 per 20-ft piece.
Total requested length: 20 linear ft.

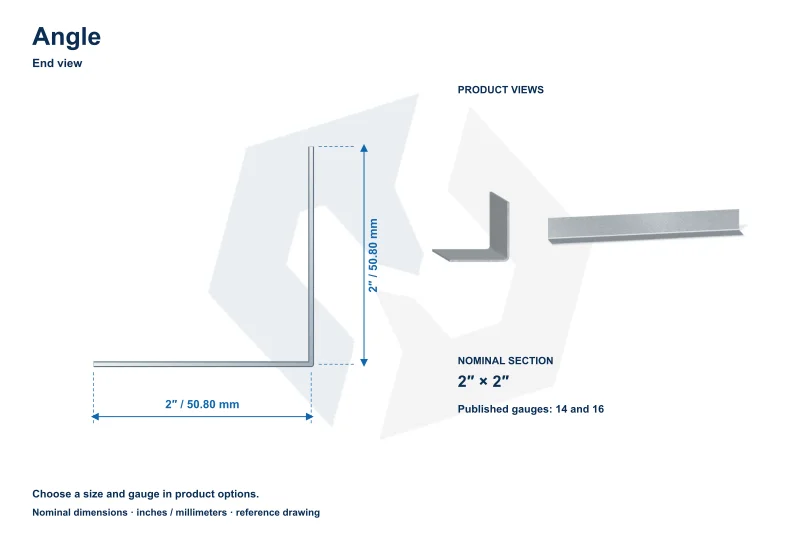

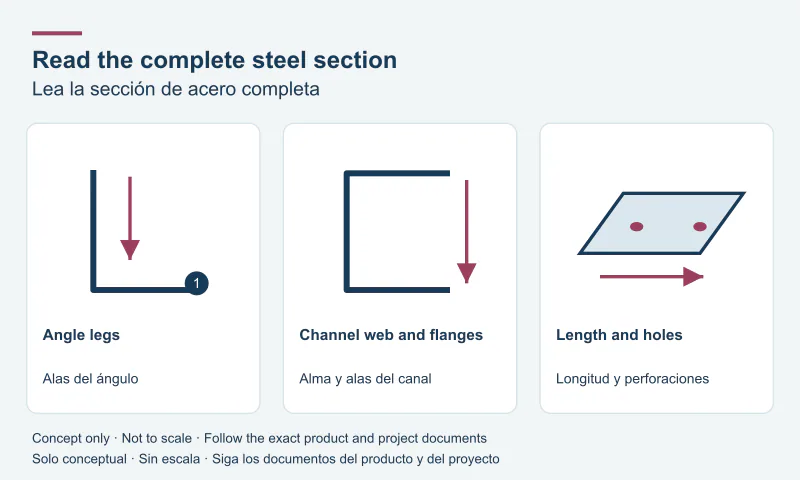

Published dimensions and weights
- Leg sizes
- 2 × 2 in; 2 × 4 in; 3 × 3 in
- Published gauges
- 14 and 16
- Reference length
- 20 ft
Published weight table (12)
Each row applies to the stated section and gauge.
| Section | Gauge | Weight |
|---|---|---|
| 2 x 2 in · Red Oxide | 14 | 18.48 lb / 20 ft piece |
| 2 x 2 in · Galvanized | 14 | 19.03 lb / 20 ft piece |
| 2 x 2 in · Red Oxide | 16 | 15.44 lb / 20 ft piece |
| 2 x 2 in · Galvanized | 16 | 16 lb / 20 ft piece |
| 3 x 3 in · Red Oxide | 14 | 27.86 lb / 20 ft piece |
| 3 x 3 in · Galvanized | 14 | 28.69 lb / 20 ft piece |
| 3 x 3 in · Red Oxide | 16 | 23.29 lb / 20 ft piece |
| 3 x 3 in · Galvanized | 16 | 24.12 lb / 20 ft piece |
| 2 x 4 in · Red Oxide | 14 | 27.86 lb / 20 ft piece |
| 2 x 4 in · Galvanized | 14 | 28.69 lb / 20 ft piece |
| 2 x 4 in · Red Oxide | 16 | 23.29 lb / 20 ft piece |
| 2 x 4 in · Galvanized | 16 | 24.12 lb / 20 ft piece |
Product resources
Request current drawings and installation instructions for your selected product.
