Screw Head and Drive Types for Steel Assemblies
Compare screw heads and drives for steel framing and panels, including bearing, clearance, tool access, and the details needed on a purchase list.
A screw head and a screw drive are different

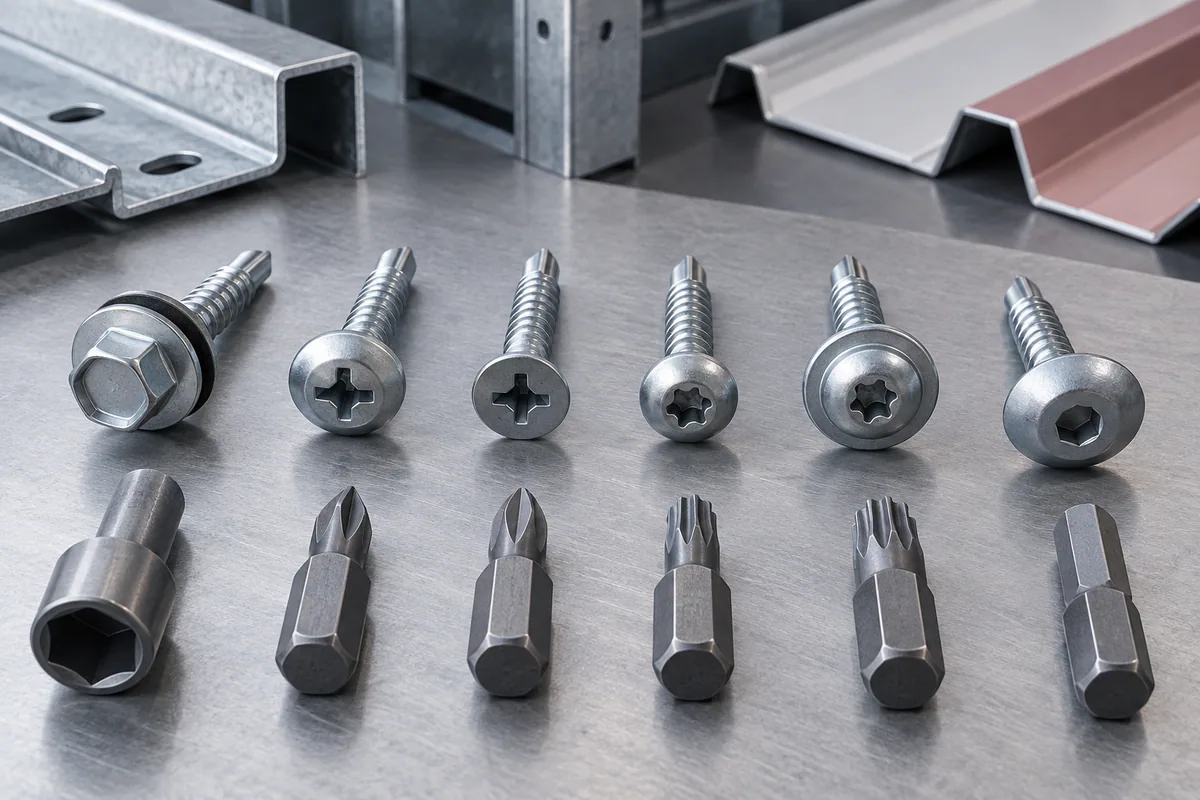

The head is the part that bears against the connected assembly. The drive is the interface used by the installation tool, such as an external hex or a recessed pattern. A description such as hex screw is incomplete because it may leave the bearing surface, washer, size, material, and application unclear.
Keep the two attributes separate when comparing products. This helps identify why two screws with the same diameter and length may not be interchangeable. One may project into a clearance zone; another may present a different bearing arrangement. The correct selection is the one documented for the connection, including any finish or sealing requirement.
References: Self-drilling screw product families
Compare common arrangements without ranking them
There is no universally best head for steel work. Use this table to identify the issue to review, then obtain the exact product drawing and connection information.
| Feature | Useful question | Information to request |
|---|---|---|
| External hex head | Can the specified socket reach and fully engage it? | Head dimensions and drive size |
| Low-profile head | Does the connected assembly require limited projection? | Head profile and accepted application |
| Countersunk head | Is the receiving detail designed for this geometry? | Approved hole and head arrangement |
| Head with sealing washer | Is this the specified panel sealing system? | Washer material, dimensions, and installation reference |
Check access as part of the assembly
A product can fit on a drawing but be difficult to reach after adjacent parts are installed. During coordination, show the fastener location relative to returns, flanges, panel ribs, and neighboring work. Ask the installer to identify tool-access concerns before ordering a different head to solve them.
Access should be reviewed alongside construction sequence. A fastener concealed by the next panel or finish may need inspection earlier than surrounding work. Put that point on the coordination list, with the responsible person and required evidence. This turns a vague access complaint into an actionable question while preserving the approved connection design.
Match the tooling to the actual product
Triangle Fastener's installation guidance treats drive size and head style as separate specification fields and warns that worn bits or sockets can damage the recess or finish. Use the current instructions for the named fastener and keep suitable replacement tooling available.
Do not infer tool settings from the visible head alone. A similar-looking screw supplied by another manufacturer may have different installation guidance. When the product changes, include the instructions in the handoff to the installer instead of assuming that the existing setup carries over. A short preinstallation comparison can identify a mismatch before it is repeated across a wall or roof.
References: Specifying and installing tapping screws (PDF)
Example: a trim clearance conflict
Suppose trim does not sit as detailed because the selected screw heads project into its path. Record the trim reference, screw designation, and conflict location. Ask whether the issue comes from the wrong product, an incorrect assembly, or a detail that needs revision. Avoid treating a lower head as an automatic solution.
A useful resolution identifies the accepted fastener and any revised drawing, then updates purchasing and installation records. If delivered material must be reassigned, label its permitted use rather than leaving two nearly identical boxes together. At closeout, retain the accepted product description so a future repair does not repeat the original ambiguity.
- Record head style and drive pattern separately.
- Confirm tool access and surrounding clearances.
- Include any washer or sealing component in the product identity.
- Review a proposed substitution as a complete fastener change.
Common questions
Is a larger head always stronger?
Head geometry can affect a connection, but a visual size comparison does not establish capacity. Use the approved product and the relevant connection data.
Can I add a washer to create the same bearing surface?
Only when that arrangement is permitted by the approved detail and product documentation. An added washer changes the assembly and may also affect length, clearance, or sealing.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Specifying and installing tapping screws (PDF) Triangle Fastener Corporation
- Self-drilling screw product families ITW Buildex
