Screw Length and Thread Engagement in Steel Connections
Separate overall screw length, attachment thickness, drilling capacity, and thread engagement so steel fastener requests describe the full assembly.
Write down four different dimensions

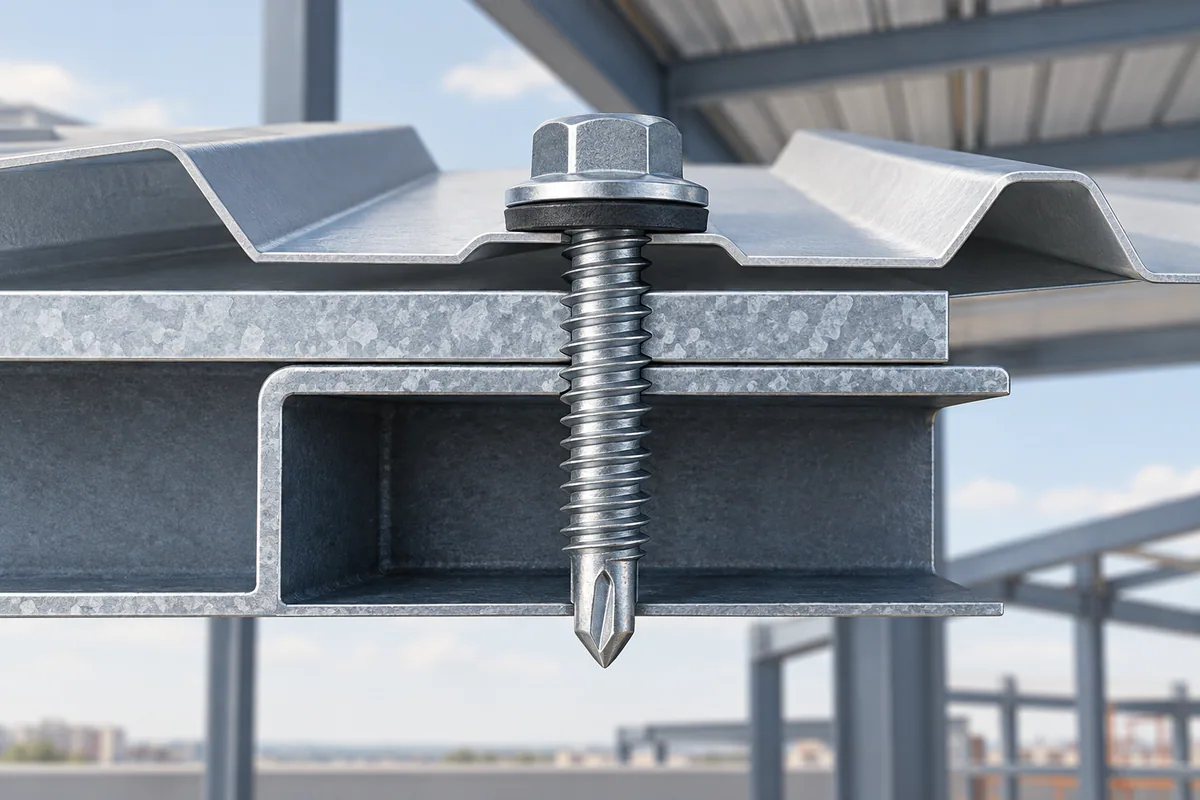

A screw description can contain an overall length, but the connection review needs more context. Distinguish the supplied screw length, the total attachment thickness, the steel thickness to be drilled, and the engagement or protrusion required by the approved documents. These terms answer different questions and should not occupy one unlabeled dimension on a sketch.
Start at the bearing surface identified by the product literature, then label the assembly in order. Include the attached piece, connector, washer arrangement, intervening layer, and supporting steel where applicable. A visible space is still relevant to the length review even though it is not a steel layer that the point must cut.
References: How self-drilling screws work
Check the installed relationship, not just the box
The fastener must reach the supporting material with the correct part of its geometry. Manufacturer and applicable connection requirements define the needed thread engagement or exposed threads; do not turn a commonly repeated thread-count rule into a substitute for the exact detail.
A receiving check can confirm the ordered length, but it cannot confirm the installed assembly by itself. Coordinate a representative accessible connection with the approved detail before large quantities are concealed. Record what can actually be seen and identify anything that needs verification before covering the work. Photographs are most useful when they include a location and a clear view of the relevant surfaces.
References: Fastening information for cold-formed steel construction
Use a length review table
Organize the information before discussing a longer or shorter alternative. Leave unknown dimensions open rather than estimating them from a product photo.
| Item | Why it matters | Record to retain |
|---|---|---|
| Head style | Defines the relevant measurement and bearing arrangement | Exact product designation |
| Attached layers | Occupy part of the fastener's available length | Labeled assembly sketch |
| Supporting steel | Must be compatible with point and thread requirements | Material specification |
| Required engagement | Establishes the installed condition to verify | Approved detail and product instructions |
| Backside clearance | May limit protrusion or access | Field condition or coordinated drawing |
Longer is not automatically better
A longer screw might solve a reach issue while creating a clearance problem. It can also be a different product with a different point or threaded portion. Review its full designation instead of editing the length field on an otherwise unchanged purchase record.
The same care applies when a washer or additional layer is introduced after the original fastener was selected. Treat that change as a revision to the assembly. Ask whether the existing selection still works, and identify who will provide the answer. Keep the resulting decision with the revised detail so that a later reviewer can understand why the installed screw differs from an early material list.
Example: a late-added connector layer
Imagine a connection originally shown as two steel members, followed by a revision adding a connector plate. The fastener may now need a different length even if its diameter remains unchanged. A clear review package shows the original stack beside the revised stack, with the extra layer highlighted and all other dimensions retained.
The reviewer can then confirm length, drilling suitability, and connection requirements together. The purchasing team receives an exact accepted item, while the field team receives the matching detail. This is more reliable than sending a photograph of a screw tip and asking whether it looks long enough.
- Identify the revision that changed the attachment.
- Confirm the complete product, including point and head.
- Check available clearance on the back of the assembly.
- Retain approval and the installed verification record together.
Common questions
Does the drill point count as thread engagement?
No. Distinguish the cutting point from the threaded portion and use the manufacturer's stated engagement or protrusion requirements for the exact connection.
Can I choose length from total thickness alone?
Total thickness is an input, not a complete selection method. Head geometry, point geometry, required engagement, and clearance also need review.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- How self-drilling screws work Simpson Strong-Tie
- Fastening information for cold-formed steel construction Simpson Strong-Tie
