Connections & installation
Post-Installed vs. Cast-In Anchors for Steel Components
Compare cast-in and post-installed anchorage by construction timing, coordination, documentation, and field conditions before purchasing steel anchors.

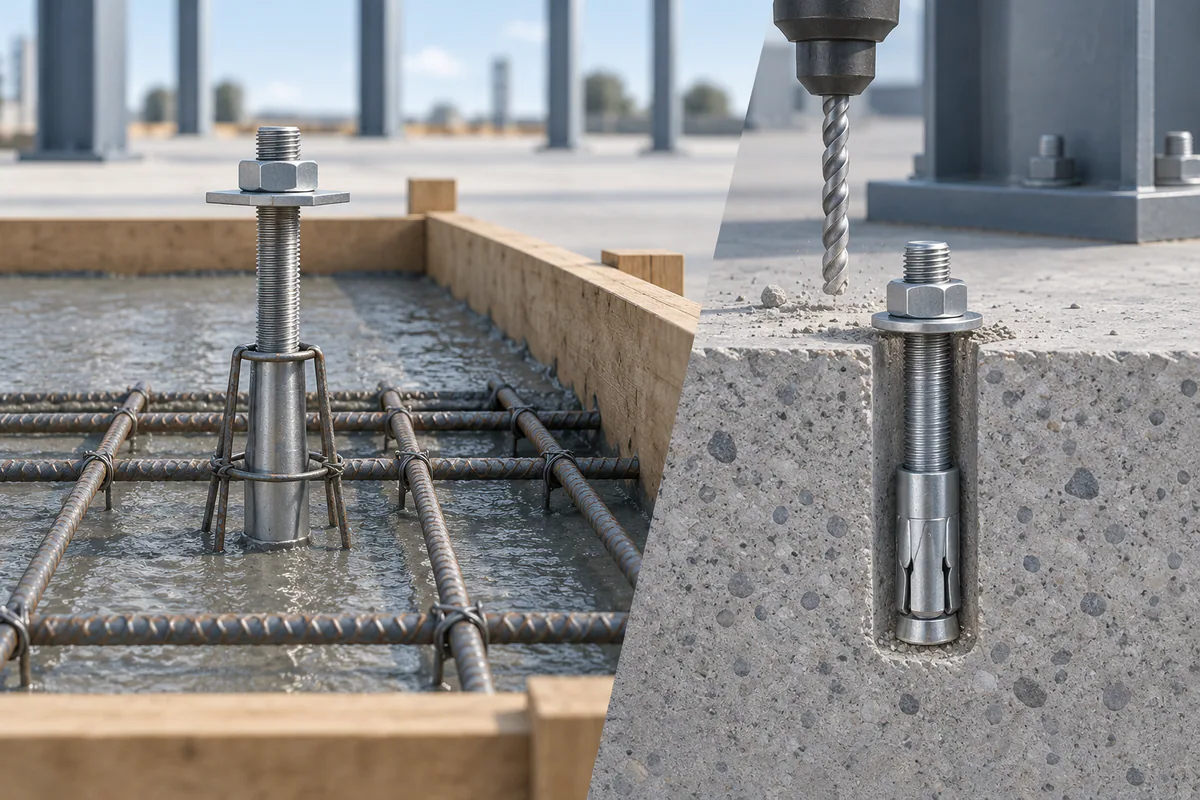

Understand the timing difference
Cast-in anchors are positioned before concrete placement. Post-installed anchors are installed into hardened base material using the method prescribed for the selected system. Post-installed systems include different mechanical and adhesive technologies; the name describes timing, not one common installation procedure.
This distinction helps organize project planning. New concrete may allow early anchor-layout coordination, while existing concrete requires investigation of the actual base material and accessible installation conditions. Neither situation justifies selecting anchors from diameter and quantity alone.
References: Mechanical and adhesive anchor mechanisms
Plan cast-in coordination before concrete placement
For a cast-in arrangement, compare the anchor plan with the steel base-plate or attachment drawings while changes can still be reviewed. Record the layout reference, orientation, anchor identification, and required projection from the approved documents. Confirm which party supplies, positions, checks, and documents the anchors.
Use one current revision set across the concrete and steel teams. A dimension from an old shop drawing should not remain active simply because it has already been transferred to a template. Establish a clear point at which the coordinated layout is released, and retain the record of any later approved change.
Investigate post-installed conditions before ordering
A post-installed proposal needs enough information about the existing substrate and intended connection to support design and product review. Hilti's technical guides cover product-specific anchoring information; use the relevant current documentation for the actual system.
Coordinate known reinforcement, embedded services, access, and the project's required investigation before drilling. If the field condition differs from the assumed design, record it for review. An anchor available in the warehouse is not a resolution to an unknown substrate or a conflict at the intended location.
References: Product technical guides for anchoring and fastening
Compare the coordination tasks
Both approaches need design, installation, and inspection records, but the timing of decisions differs.
| Task | Cast-in anchorage | Post-installed anchorage |
|---|---|---|
| Layout release | Coordinate before concrete placement | Coordinate with verified existing conditions |
| Product record | Specified rod or insert and associated components | Exact complete anchor system |
| Field verification | Position and condition at required stages | Base material and product installation conditions |
| Change management | Review deviations before steel fit-up | Review conflicts before modifying location or system |
| Closeout | Accepted layout and inspection records | Accepted installation and inspection records |
Do not change installation method by analogy
A product intended for post-installation should not be assumed to have the same performance when placed into fresh concrete. Hilti specifically notes that its post-installed anchor data do not automatically cover casting those products in place.
The reverse shortcut is also unhelpful: a missing or misplaced cast-in anchor does not establish that a post-installed replacement of the same diameter is suitable. Document the original requirement and actual condition, then obtain a revised design or accepted repair appropriate to the project.
References: Can post-installed anchors be cast in?
Example: an anchor layout changes late
Imagine that a revised steel attachment shifts an anchor after the concrete package was prepared. First establish whether the concrete has been placed and which layout was actually used. Provide the responsible reviewers with the original and revised details, the current field condition, and the planned steel connection.
The resolution should identify the accepted anchorage and any revised installation or inspection requirements. Update the procurement line only after that decision is documented. Keep the original item marked as superseded so that a later delivery or field reference does not revive the earlier arrangement.
- Confirm construction stage and actual anchor condition.
- Coordinate the steel and concrete references together.
- Obtain a reviewed anchorage resolution.
- Update purchasing, installation, and inspection documents.
Common questions
Are cast-in anchors always better?
There is no universal ranking. The project design, construction stage, base material, geometry, and installation conditions determine which accepted system is appropriate.
Can I substitute a post-installed anchor for a missing cast-in rod?
Only after the responsible design review establishes an acceptable replacement and its installation requirements. Matching diameter alone is insufficient.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Mechanical and adhesive anchor mechanisms Hilti
- Can post-installed anchors be cast in? Hilti
- Product technical guides for anchoring and fastening Hilti
