Framed Openings vs. Frame Bays in Metal Buildings
Distinguish a door or window opening from the primary frame grid, and coordinate wall support, bracing, and accessory loads.
Understand the project condition

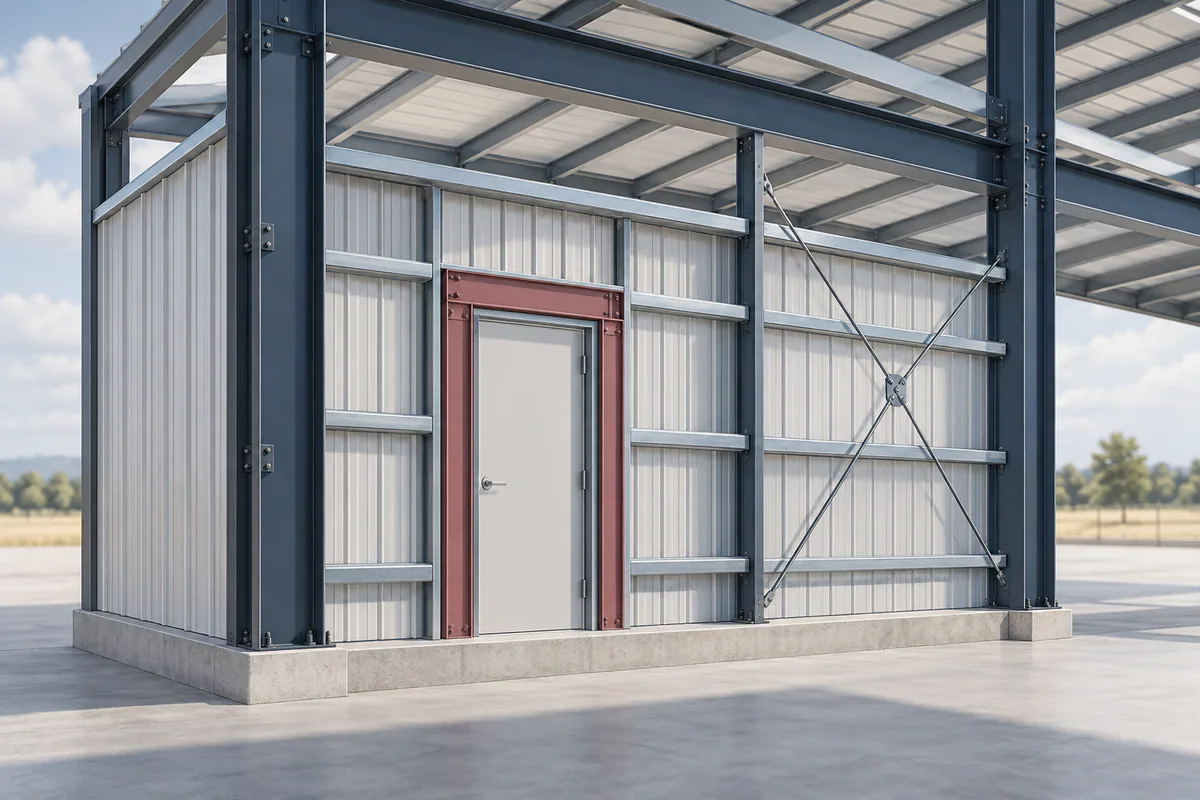

A framed opening is a local wall condition for a door, window, louver, or similar element. A frame bay is part of the building's primary grid. Confusing the two can produce an opening that fits the architectural elevation but conflicts with columns, girts, or lateral bracing.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Compare decisions before fabrication release
Specify clear opening dimensions, reference elevations, and accessory requirements separately from column spacing. Obtain the actual door or louver submittal, including its support and operational envelopes. Describe which framing the building supplier provides and which accessory framing or attachments remain with the installer.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Coordinate the trade interface
The opening supplier's design loads and attachment needs must reach the building-system designer before release. Compare bracket locations with jambs, headers, braces, and enclosure transitions. If an opening moves, review the complete wall layout rather than treating the change as a panel-cutting instruction.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Primary bay | Frame grid and column coordinates | Establish building support locations |
| Framed opening | Jamb/header dimensions and elevations | Confirm local opening geometry |
| Installed accessory | Loads, attachments, and operation envelope | Coordinate work supplied by others |
References: Common Industry Practices, 2024 edition · Metal building system design resources
Close open items and transfer the information
Retain opening submittals with the final wall drawings, including accepted support and weather-transition details. Identify accessory loads supplied by others and any changes made after fabrication release. For later replacements, compare the new accessory with the documented support condition instead of relying solely on clear opening size. A same-size door or louver can still have different brackets, operating equipment, or design inputs that need reconciliation with the existing jambs and header.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Identify every opening by mark and manufacturer submittal.
- Check opening positions against columns and braced bays.
- Resolve accessory support responsibilities before wall fabrication.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Common Industry Practices, 2024 edition · Metal building system design resources
Common questions
Does a clear door opening equal the distance between columns?
Not necessarily. Jamb framing, columns, connections, and door hardware can create different dimensions.
Can an opening move without changing the wall design?
It requires review of framing, bracing, loads, and enclosure details at the new location.
