Steel framing
Expandable vs. Nonexpandable Metal Building Endwalls
Define future endwall expansion through frame configuration, bracing, foundations, enclosure removals, and written manufacturer scope.
Understand the project condition

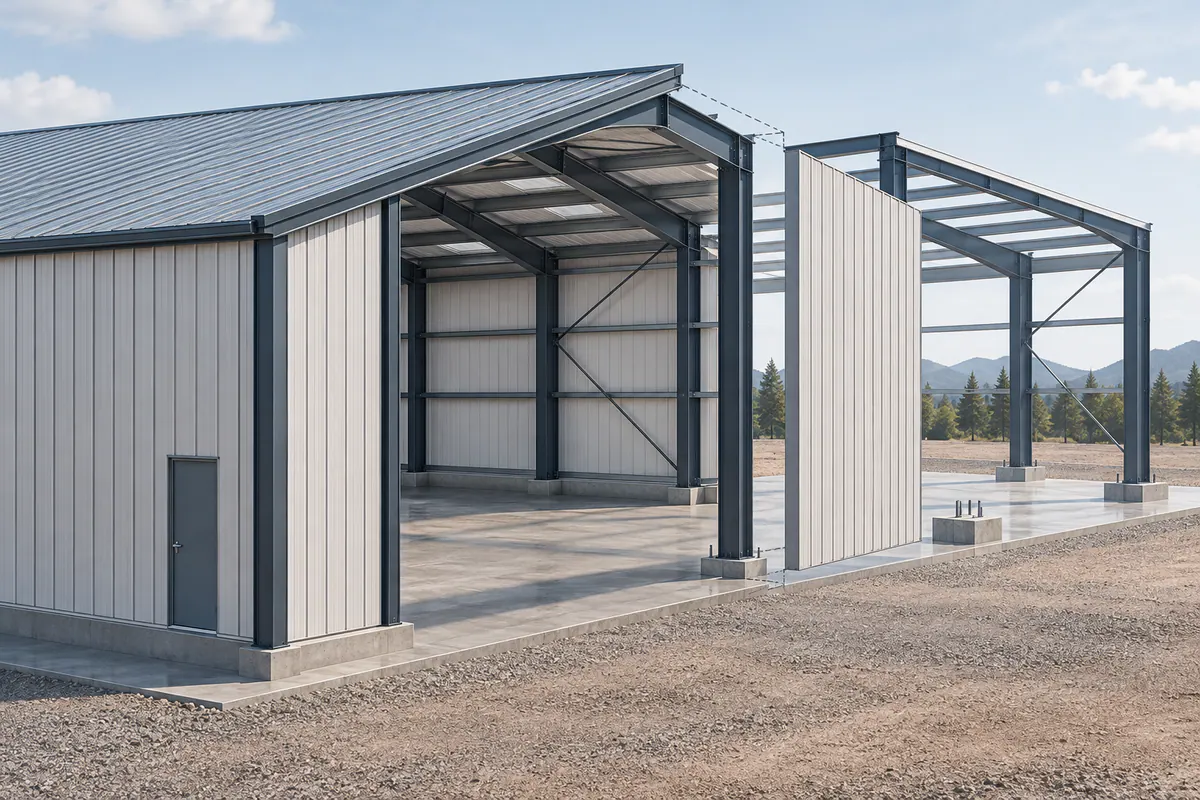

The endwall closes the building's short end and may use a framing arrangement different from interior rigid frames. A future length extension can require that end to become an interior condition. Existing posts, wall bracing, and foundation arrangements may not suit that changed role.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Describe the intended future extension with width, roof geometry, likely openings, and operating use. Ask the manufacturer what expandable means in its proposal and which future conditions are included. Preserve the distinction between accommodating a defined addition and promising unrestricted future modification.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Review endwall bracing, foundation reactions, removable cladding, and existing services together. Removing the wall during an addition can affect lateral stability and weather protection. The addition designer and erection contractor need the original scope and a reviewed temporary-condition plan before work begins.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Present endwall | End frame and bracing drawings | Understand the current structural role |
| Planned extension | Defined future geometry and use | Confirm what expansion allowance covers |
| Transition work | Removal and temporary-condition scope | Coordinate safe and weather-protected work |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Archive the defined expansion condition with the final endwall and foundation records. Revisit the allowance when the addition becomes real; new occupancy, altered loads, or changed code requirements may require evaluation beyond the original intent. The addition team should confirm the actual existing condition and identify later modifications. Keep the original expandability statement as a bounded design assumption, rather than passing it to a future owner as unrestricted approval to extend the building.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Request a written definition of the proposed expandable endwall.
- Record future foundation and bracing assumptions explicitly.
- Archive the endwall design basis for the addition team.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Does an endwall that looks like a rigid frame guarantee expandability?
No. Verify its design basis, connections, foundations, and future-condition documentation.
Can endwall bracing be removed when new frames arrive?
Removal requires a reviewed construction sequence and confirmation of the replacement stability system.
