Write a Metal Building Deflection and Serviceability Brief

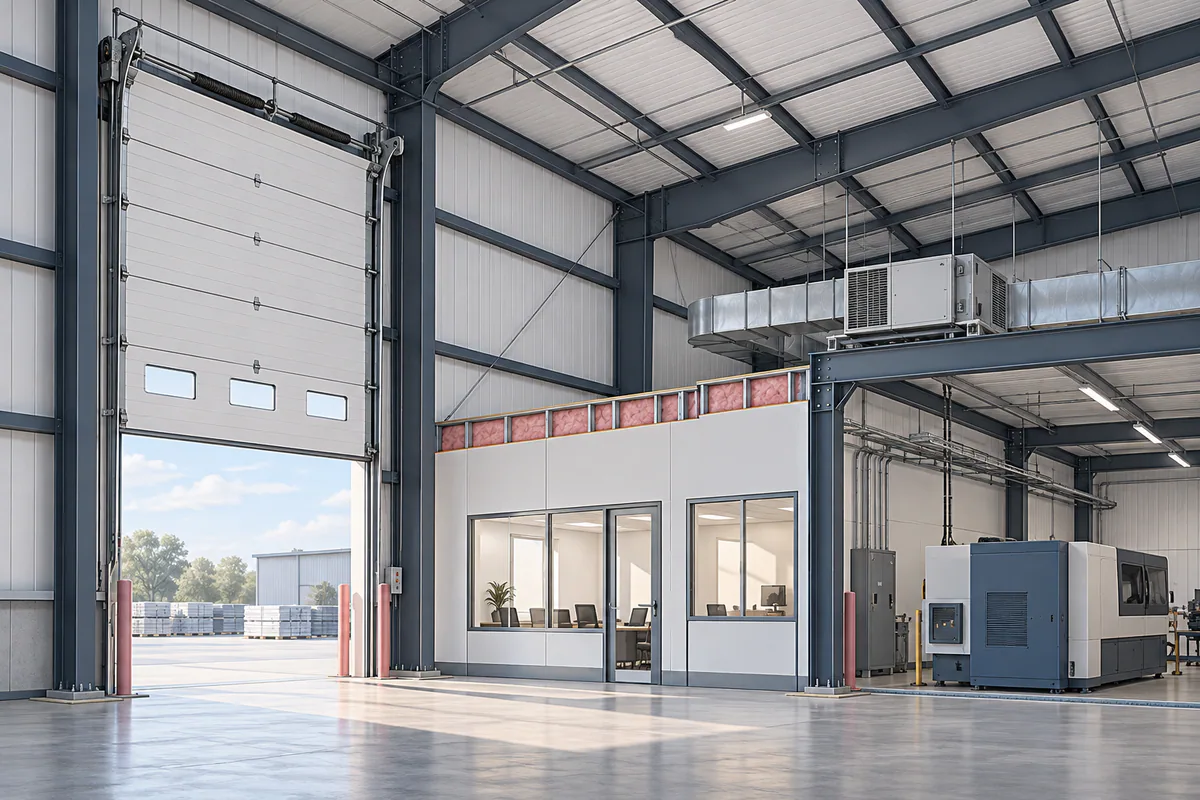

Document movement-sensitive doors, partitions, equipment, and finishes so serviceability requirements reach the steel building design team.
Understand the project condition
A building can satisfy strength requirements while movement still matters to attached systems and operations. Doors, glazing, partitions, crane equipment, and brittle finishes may have different needs. A proposal that lists only design loads can leave these expectations insufficiently defined.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Compare decisions before fabrication release
Inventory movement-sensitive interfaces and request actual supplier requirements. Identify frame drift, roof movement, and local support behavior as distinct coordination questions. Avoid inventing a universal numerical limit; applicable project requirements and professional design decisions determine which criteria govern each interface.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Coordinate the trade interface
Architectural, equipment, and enclosure suppliers should share their relevant movement limits and details with the building designer. Reconcile competing requirements before steel release. A changed partition or door system can introduce a new serviceability requirement even when its weight is nearly unchanged.
References: Metal building system design resources · Common Industry Practices, 2024 edition
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Sensitive finish | Supplier movement and connection requirements | Coordinate cracking and joint interfaces |
| Operating equipment | Alignment and clearance criteria | Reconcile frame/equipment performance |
| Building design | Accepted serviceability basis | Keep all suppliers on one review basis |
References: Metal building system design resources · Common Industry Practices, 2024 edition
Close open items and transfer the information
Retain the accepted serviceability brief with the structural design basis and relevant supplier criteria. Identify final movement details at sensitive finishes, equipment, and partitions. Later fit-out changes should be reviewed for movement sensitivity as well as added weight. If a door binds or a finish cracks, document the actual condition and seek appropriate assessment instead of assuming either structural failure or a purely cosmetic issue from the observation alone.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- List every system whose operation or finish depends on movement.
- Obtain supplier criteria rather than assuming standard values.
- Have responsible designers reconcile the combined requirements.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Metal building system design resources · Common Industry Practices, 2024 edition
Common questions
Are strength and serviceability the same check?
No. Strength and movement-related performance address different aspects of the project.
Can a rigid partition change building coordination without adding much weight?
Yes. Its movement tolerance and attachment condition may require different details or design review.
