Conveyor Supports and Steel Building Coordination

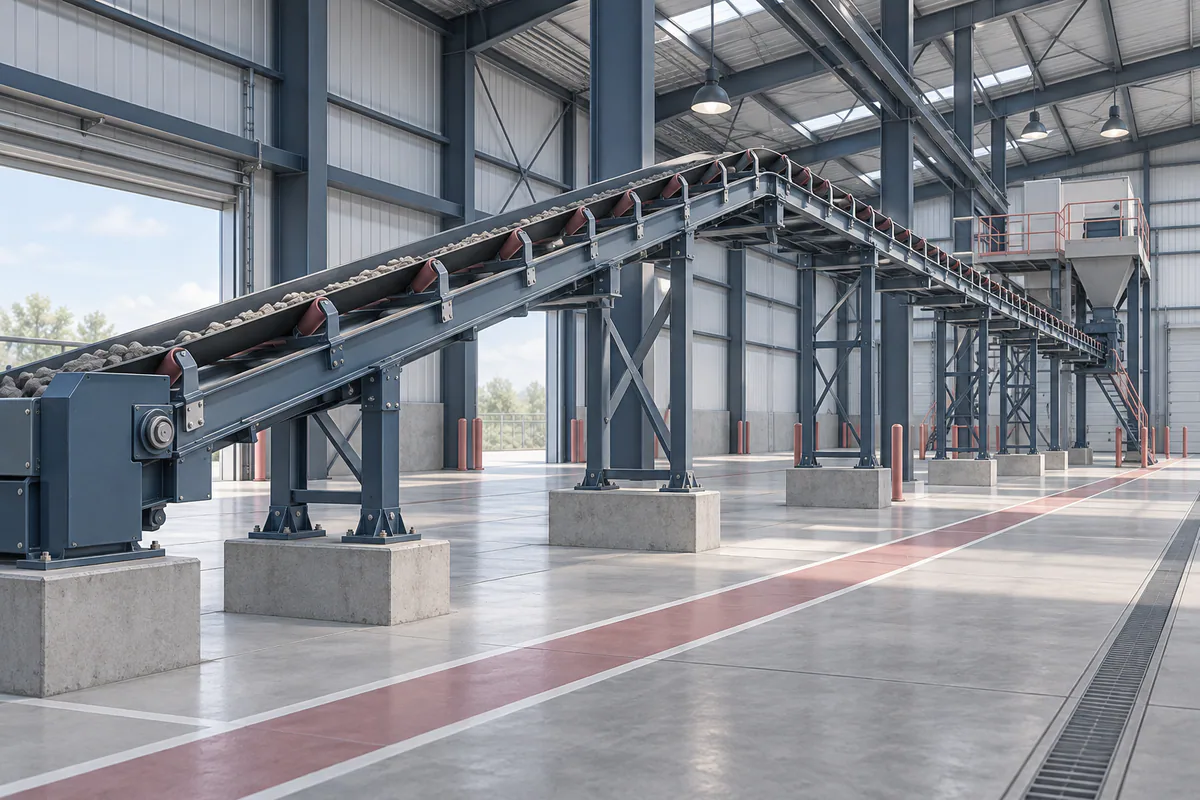

Define conveyor support loads, operating envelopes, maintenance zones, and independent or building-connected structures in a steel facility.
Understand the project condition
A conveyor can cross several frame bays and operate near doors, racks, and overhead services. Its supports may be floor-mounted or suspended, and operating equipment can introduce inputs beyond static self-weight. A schematic route does not establish the support requirements of the selected equipment.
For a US project, begin with the intended use and documents applicable to that site. The building manufacturer, project engineer of record, and contractors may have different scopes. Identify who provides each input and who reviews the interfaces; purchasing a metal building system does not by itself resolve foundations, building services, or occupancy requirements.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Compare decisions before fabrication release
Obtain supplier information for the actual equipment, material handling use, support positions, and maintenance requirements. Identify moving components and any special operating inputs for the responsible designer. Compare independent and building-connected support schemes using the same layout, rather than placing supports wherever framing happens to be available.
Compare alternatives on the same project basis. Record dimensions, revisions, and assumptions explicitly, and distinguish a confirmed requirement from a future possibility. When a decision changes reactions, connections, or geometry, request revised documents before authorizing affected work. A sales note or preliminary drawing should not silently become a field instruction.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Coordinate the trade interface
Floor-mounted supports need coordination with footings, slab joints, utilities, and circulation. Suspended supports need reviewed connections and clearance to primary and secondary members. Keep equipment movement and building movement compatible, and avoid incidental ties between systems intended to remain independent.
References: Common Industry Practices, 2024 edition · Metal building system design resources
Prepare a reviewable record
This matrix organizes decisions and evidence; it does not provide design capacities or tolerances. Use the project's units and elevation references, and attach complete documents when a screenshot omits applicable notes. Each review should state its scope, unresolved items, and the person responsible for closing them.
| Condition | Required record | Decision supported |
|---|---|---|
| Equipment route | Supplier layout and operating envelope | Reserve access and maintenance space |
| Floor supports | Base and foundation requirements | Coordinate slab and utility interfaces |
| Suspended supports | Loads and attachment locations | Review building load-transfer path |
References: Common Industry Practices, 2024 edition · Metal building system design resources
Close open items and transfer the information
Retain the final conveyor support map, equipment inputs, and accepted building attachments with equipment records. Identify any independently supported areas and the interfaces they must preserve. A future extension should review added supports, operating changes, and building connections as one coordinated modification. Keep replacement motors or process changes linked to revised supplier data so maintenance does not assume every item sharing the same conveyor route has the original design inputs or support requirements.
Keep the approved response available to the people performing and inspecting the work. At scope closeout, retain the final revision with its attachments, identified photographs, and resolved items. The following links develop related subjects; manufacturer details and responsible-professional direction remain necessary for the actual project.
- Document actual conveyor use and supplier design inputs.
- Select the reviewed support arrangement before building release.
- Resolve circulation and overhead service conflicts together.
- Purlins vs. Girts: Roof and Wall Secondary Framing Explained
- Steel Connection Documentation Checklist
References: Common Industry Practices, 2024 edition · Metal building system design resources
Common questions
Can conveyor weight be spread across a general roof allowance?
Do not assume so. Actual support locations and operating inputs require professional evaluation.
Does a freestanding conveyor avoid floor review?
No. Its base, foundation, slab, and utility conditions still need coordinated design.
