Steel framing
Coordinating CFS Shear Wall Boundaries with Other Trades
Protect CFS shear-wall boundaries from service, backing, and opening conflicts through a documented coordination review.
The condition to resolve

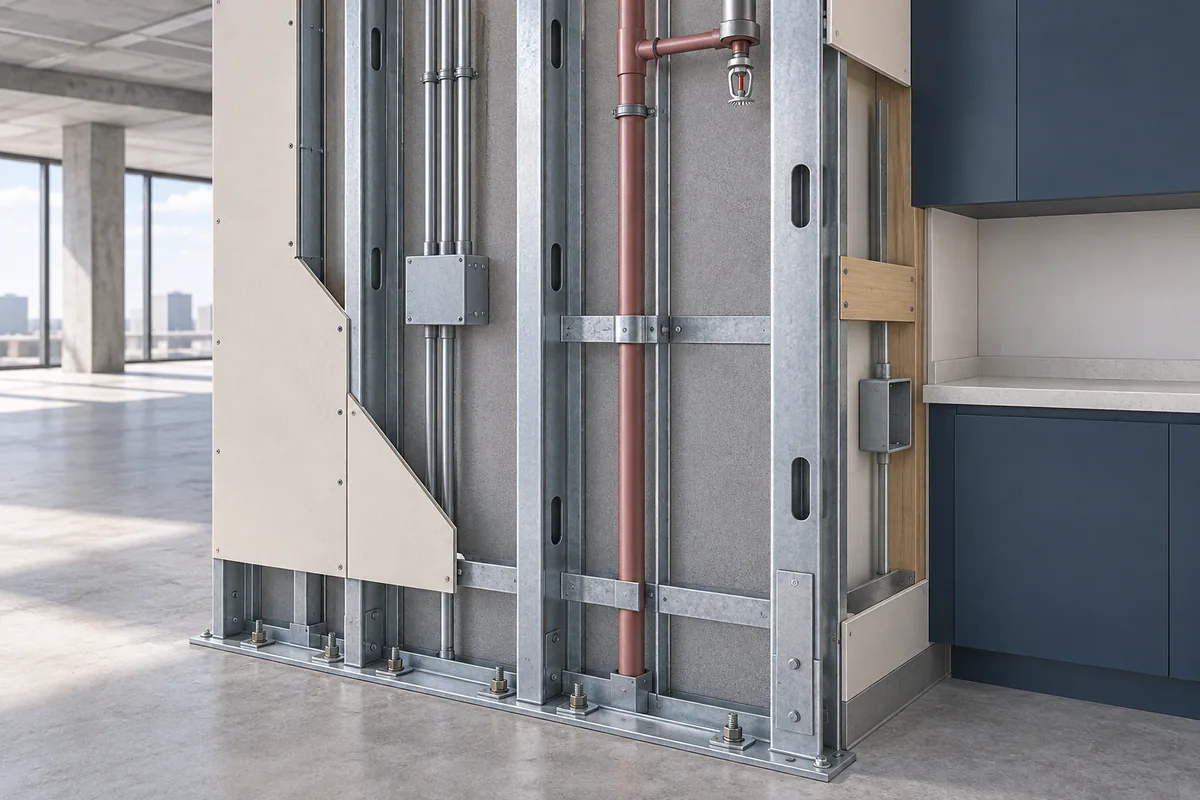

A wall designated for lateral resistance may also carry electrical boxes, a door jamb, cabinetry, and sprinkler piping. Those trades can unknowingly occupy a boundary member, strap, sheathing connection zone, or hold-down location. The architectural wall label alone rarely gives installers enough information to identify the protected structural zones in the field.
Coordinate before releasing the work
Mark the shear-wall extent and boundary details on coordination drawings with references to the structural package. Review openings and backing against that map before rough-in. Ask the designer to resolve any change in boundary geometry, sheathing, or connection access. Carry the accepted zones onto panel labels and preconcealment records so later trades can recognize the same restrictions.
How it fits the building system
Cold-formed steel wall coordination starts with the wall's assigned role. A bearing wall, a wall resisting lateral forces, and a curtain wall can have similar-looking members but different support and movement details. Product literature supplies member information; it does not establish the building's load path. Identify the responsible structural designer and the current project detail before treating a catalog illustration as a construction instruction.
Overlay the architectural wall line with the structural support and the actual field survey. Carry the reference elevation, member orientation, opening locations, and interfaces into the same review. A dimension that works in plan may still conflict with a beam flange, slab edge, or finish at another elevation. Record these conflicts while the framing remains accessible, then obtain a coordinated response before changing members or connections.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Structural track: applications and supporting details · Deep leg deflection track system
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Highlight boundary members and anchorage on the service overlay.
- Check cabinet backing and boxes against structural connection zones.
- Keep boundary details visible until the assigned review is complete.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Wall extent | Structural wall designation | Protected boundary locations |
| Service conflict | Trade layout overlay | Approved routing or redesign |
| Concealed connection | Inspection access plan | Review before enclosure |
Verification and handoff to the next trade
At the boundary review, reconcile installed members, sheathing interfaces, and anchorage with the current structural designation. Check later service work against the protected-zone map before finishes close the wall. If a connection is no longer accessible, document that limitation and obtain the project's required response rather than marking the entire wall accepted. Retain approved relocations and restored details by wall mark so future alterations can identify the actual lateral-system boundary.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can the service installer move a boundary stud slightly?
A boundary member has an assigned structural role. Submit the proposed move to the responsible designer, even when the architectural wall face would remain unchanged.
Does a shear-wall label establish every attachment detail?
No. The label identifies the wall's role. The current structural details must establish the boundary, connections, sheathing requirements, and interface with the rest of the building.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Structural track: applications and supporting details ClarkDietrich
- Deep leg deflection track system ClarkDietrich
