Planning Access to CFS Wall Hold-Downs and Anchorage
Coordinate hold-down access, installation sequence, and inspection records before CFS wall anchorage becomes concealed.
The condition to resolve

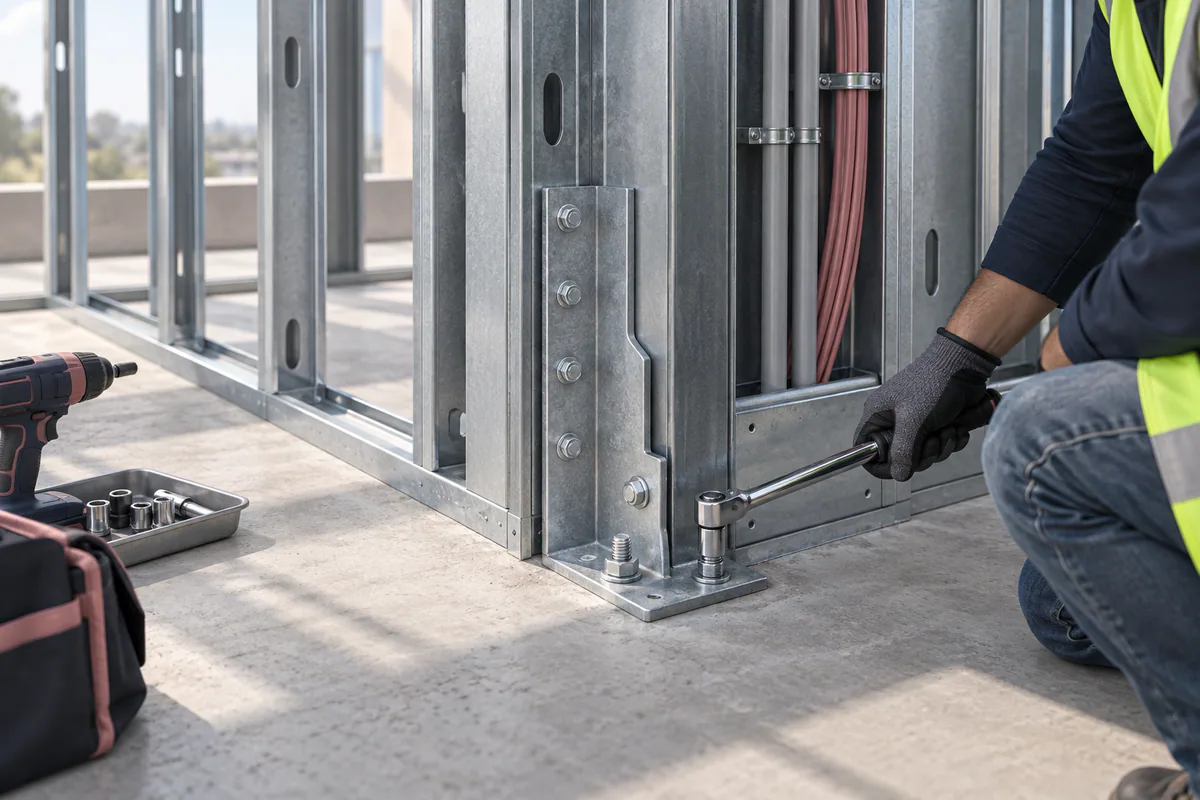

A hold-down can be fully shown on the structural drawings yet difficult to reach after a panel is installed against a column or another wall. A pipe chase, factory-applied sheathing, or floor edge can limit tool and inspection access. Discovering that conflict during installation can delay completion of the wall's intended anchorage.
Coordinate before releasing the work
Review the actual hardware configuration and approved connection with the installer and inspection team. Locate the access side, construction sequence, and photographs required before concealment. If access requires a change to panel construction or adjacent work, have the relevant designer and trade approve the approach. Do not relocate an anchorage merely to make it easier to reach.
How it fits the building system
Cold-formed steel wall coordination starts with the wall's assigned role. A bearing wall, a wall resisting lateral forces, and a curtain wall can have similar-looking members but different support and movement details. Product literature supplies member information; it does not establish the building's load path. Identify the responsible structural designer and the current project detail before treating a catalog illustration as a construction instruction.
Overlay the architectural wall line with the structural support and the actual field survey. Carry the reference elevation, member orientation, opening locations, and interfaces into the same review. A dimension that works in plan may still conflict with a beam flange, slab edge, or finish at another elevation. Record these conflicts while the framing remains accessible, then obtain a coordinated response before changing members or connections.
References: Current technical notes for CFS walls, floors, connections, and inspection · Structural studs: product data and design resources · Structural track: applications and supporting details · Deep leg deflection track system
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Identify tool access for each hold-down at corners and columns.
- Coordinate factory sheathing with the anchorage installation sequence.
- Schedule the required anchorage review before services close the zone.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Hardware location | Approved connection detail | Accessible installation side |
| Panel closure | Fabrication and erection sequence | Temporary access provision |
| Inspection | Location-based inspection record | Permission to conceal |
Verification and handoff to the next trade
Before covering the anchorage zone, confirm that the actual connection has received its assigned observation and any corrective work is closed. Retain the hardware identity, location, and accepted detail with the review record. Give adjoining trades the access restrictions until that status is confirmed. If a factory-closed panel prevents verification of required work, raise the issue before installation proceeds; exterior appearance alone cannot establish the concealed anchorage condition.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a panel shop close both faces around a hold-down?
Only when the approved assembly and installation sequence preserve the required connection and review access. Coordinate that condition before fabrication.
Are photographs a substitute for required inspection?
No. They support the project record. Confirm the required observation and acceptance process with the assigned reviewer or authority for the project.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
- Structural studs: product data and design resources ClarkDietrich
- Structural track: applications and supporting details ClarkDietrich
- Deep leg deflection track system ClarkDietrich
