Handing Off CFS Floor-Level Surveys to Follow-On Trades
Coordinate measured CFS floor elevations with topping, partitions, doors, and facade interfaces using a documented survey handoff.
The condition to resolve

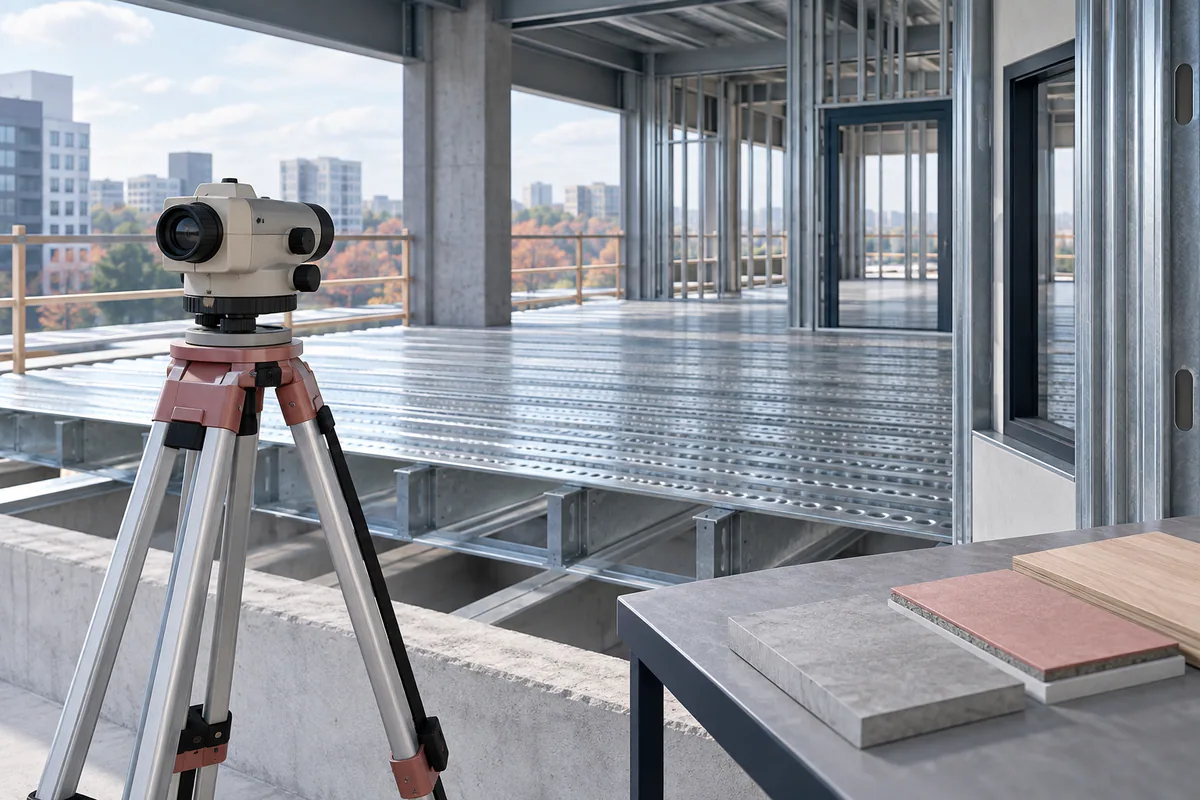

A survey of bare deck and a survey of finished floor describe different surfaces. Follow-on wall panels, door frames, and facade components can be ordered from the wrong elevation if that distinction is lost. Record the construction stage and measurement basis alongside the readings rather than forwarding an unlabeled list of levels.
Coordinate before releasing the work
Identify the common datum and the locations needed by each receiving trade. Distinguish deck, topping, and finish elevations in coordinated sections. Route unexpected differences to the relevant designer before compensating with wall-height or threshold changes. Reissue the handoff after an accepted correction so old survey values do not remain in active fabrication instructions.
How it fits the building system
A cold-formed steel floor is an assembly of joists, supports, restraint, deck or sheathing, finishes, and connections. Review the entire assembly rather than ordering joists from a span alone. Manufacturer data describes specific products and conditions; the project designer must reconcile those conditions with the building's loads, openings, and supporting construction. Product substitutions can change interfaces even when the nominal member depth remains the same.
Prepare a coordinated floor section showing the structure, service zone, ceiling, and finished floor elevation. Locate bearing lines and special openings in plan, then track the details that cannot be seen after enclosure. Before releasing an area for subsequent work, check that temporary construction activities and stored materials follow the approved construction plan. A finished-floor review and an installation-stage review answer different questions.
References: TradeReady steel joists: system data and application limits · TradeReady floor joist blocking · Current technical notes for CFS walls, floors, connections, and inspection
Practical location-based review
Assign an owner, location, and response document to each check. Include affected trades before fabrication or concealment; final dimensions and connections belong in the approved project documents.
- Label bare deck, topping, and finished-floor readings separately.
- Use the same datum across floor and wall packages.
- Transmit corrected elevation records to every affected fabricator.
Documents and decisions that must agree
Keep this comparison beside the current drawing. Record discrepancies as specific questions and preserve the response in that area's records.
| Item | Evidence needed | Decision to confirm |
|---|---|---|
| Measured surface | Stage-labeled survey | Relevant receiving trade |
| Datum | Project benchmark record | Consistent reference |
| Exception | Accepted adjustment record | Revised fabrication basis |
Verification and handoff to the next trade
Check that the survey record names the measured surface and any work remaining above it. Link exceptions to the affected wall panel, door, or facade location instead of accepting a general average for the floor. Where a proposed adjustment changes bearing, movement, or rated interfaces, obtain those reviews before follow-on fabrication. Retain the accepted elevation basis with the receiving trade's submittal so the final installed geometry can be reconciled without guessing which survey was used.
Give the next trade the current detail, the restrictions it must preserve, and open observations. Verify the installed work before concealment and retain an identifiable location in the final record.
Common questions
Can a floor average establish every panel height?
Local interfaces may need location-specific information. Ask the assigned reviewer and fabricator what survey basis is acceptable rather than replacing critical differences with an average.
When should the survey be taken?
Define the required stage with the receiving trades and project reviewer. The record must describe existing layers and planned remaining work so it serves the intended release decision.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- TradeReady steel joists: system data and application limits ClarkDietrich
- TradeReady floor joist blocking ClarkDietrich
- Current technical notes for CFS walls, floors, connections, and inspection Cold-Formed Steel Engineers Institute
