C Purlins vs. Z Purlins: Profiles, Laps, and Ordering Checks
Learn how C and Z purlin shapes differ, why laps and orientation matter, and which details to verify before ordering replacement roof framing components.
Read the shape before comparing the quote

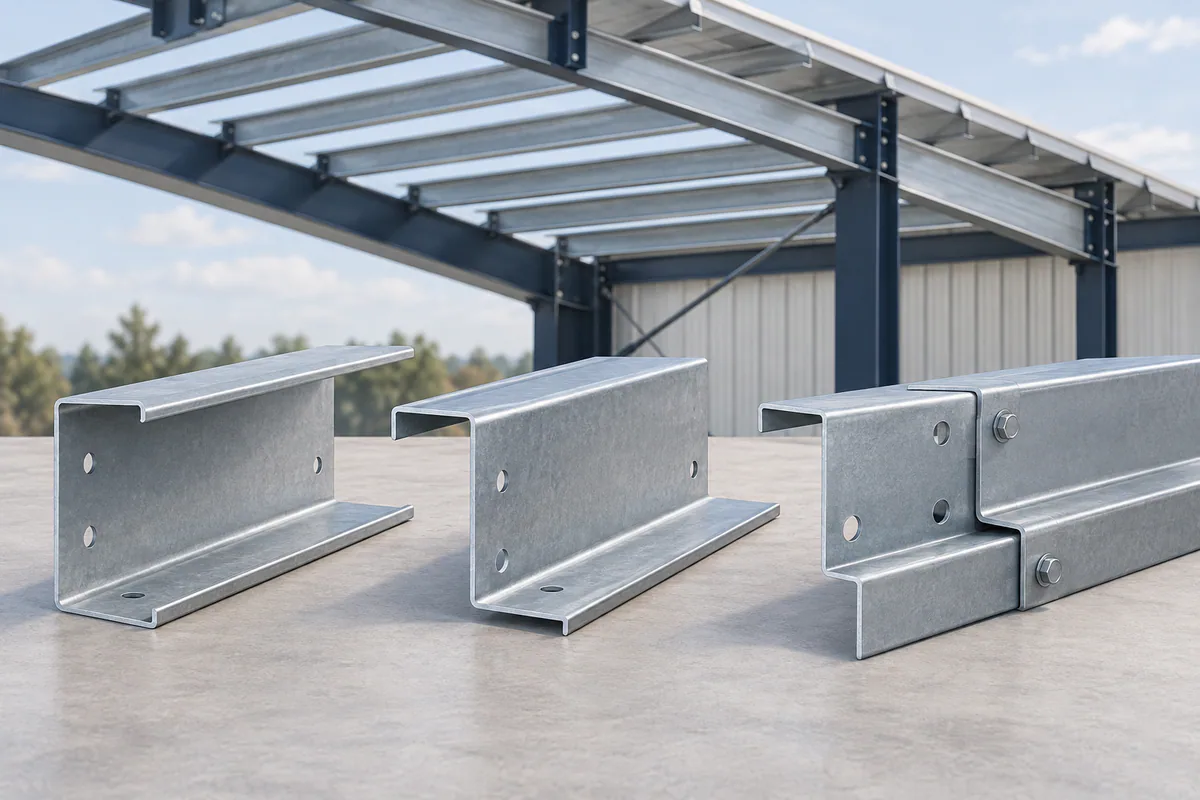

A C purlin has its flanges extending to the same side of the web. A Z purlin has flanges extending to opposite sides. Both appear in secondary roof framing, but their geometry affects how members fit together and meet supports. Manufacturer product drawings are the reliable way to identify the actual profile.
Taylor Metal lists Cee and Zee products as separate secondary-framing families and describes lapping as a feature of its Zee profile. Treat that as a system detail to verify, not permission to lap any two pieces that appear to fit.
References: Cee and Zee secondary framing profiles
Compare profiles without inventing a capacity ranking
Neither letter establishes a universal stronger option. Capacity depends on the complete section, steel properties, loading, restraint, connections, and support arrangement. The table helps identify the questions that should accompany a purlin request.
| Check | C profile | Z profile |
|---|---|---|
| Visible shape | Flanges on the same side of the web | Flanges on opposite sides of the web |
| Continuity | Verify the specified splice or support detail | Verify nesting, lap arrangement, and lap connection |
| Orientation | Record which way the open side faces | Record flange orientation and handed arrangement |
| Ordering evidence | Manufacturer section and connection drawing | Manufacturer section, lap, and connection drawing |
Identify Cee, Zee, and Mini Cee catalog items
The catalog names Cee and Zee identify the two profile families discussed here. MBCI lists Mini Cee separately, with its own section reference. Keep that exact designation in the piece schedule; Mini Cee is not a general instruction to shorten a larger Cee. Compare the complete offered section, thickness, finish, length, and punching with the approved member and connection details. Neither the Mini name nor a matching nominal depth authorizes a structural substitution. Request clarification if the schedule only says C channel without identifying the intended product.
References: Cees, Zees, and Mini Cee product identification
Treat the lap as an assembly
A lap includes more than overlap length. It includes the connected pieces, their orientation, the fasteners, the supporting frame, and any local restraint shown by the system designer. MBMA's roof-framing guide addresses continuous purlin behavior together with diaphragm and anchorage requirements.
Do not replace a lapped member with a single cut length because the clear distance looks the same. Conversely, do not add a lap to an originally simple-span condition without review. On a takeoff, separate interior-span, end-span, and special pieces when the drawings distinguish them.
References: Roof Framing Design Guide for Metal Building Systems, 2024
Check the roof and bracing interface
Before releasing material, place the purlin schedule beside the roof-system details. Identify which flange receives the roof connection, where restraint components attach, and whether insulation or a roof-system change affects the connection arrangement. Record outstanding questions against a specific roof area.
A replacement roof is a useful example. Even when existing purlins stay in place, the new panel attachment may differ from the original. Ask the responsible designer to confirm the framing and restraint arrangement before assuming the new covering works with the old secondary members.
A practical purlin-order checklist
Give each distinct piece a clear identifier. The supplier should not need to infer a hole pattern or lap position from an overall building dimension. A marked elevation or roof plan is especially helpful when several visually similar members occur in the same delivery.
- Match the complete profile, thickness, grade, and coating to the approved schedule.
- List finished piece lengths and quantities by mark, not only total linear footage.
- Attach support-hole and lap-hole information, including orientation.
- Identify bridging, sag members, clips, and other separately supplied accessories.
- State the revision and review status of every fabrication detail.
- Flag replacement pieces that require a field survey before release.
Keep substitutions visible
If a proposed product differs, prepare a side-by-side comparison of the original and proposed sections. Include dimensional differences and the affected connection detail rather than describing the substitute as equivalent based on nominal depth.
For an existing building, preserve the removed member's identifying information where practical and photograph its location before removal by the responsible contractor. The most useful record shows both the member and its interfaces; an isolated close-up rarely answers the full replacement question.
Common questions
Can I replace a Z purlin with a C purlin of the same depth?
Not by depth alone. The section properties, continuity, restraint, orientation, and connections may differ. Obtain a reviewed replacement detail that fits the existing system.
Does a Z shape automatically mean a continuous purlin?
No. Continuity depends on the actual connection arrangement. Read the purlin schedule and lap details together rather than inferring the system from its profile.
Sources & further reading
Use the current documentation for the exact product and project. Source links do not imply a partnership or endorsement.
- Cee and Zee secondary framing profiles Taylor Metal Products
- Roof Framing Design Guide for Metal Building Systems, 2024 Metal Building Manufacturers Association
- Cees, Zees, and Mini Cee product identification MBCI
