TRIM CATALOG · Standing Seam Roof Trim
Z Closure
0 ratings0 recorded purchasers
Z Closure. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5012

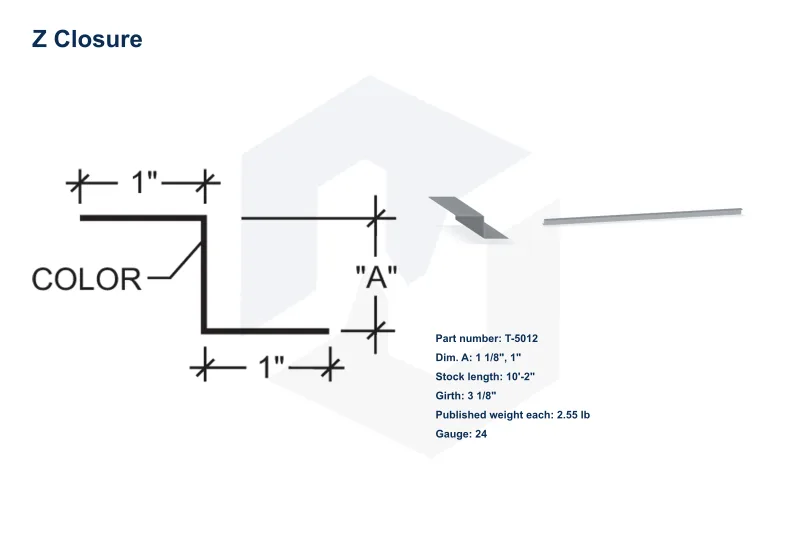

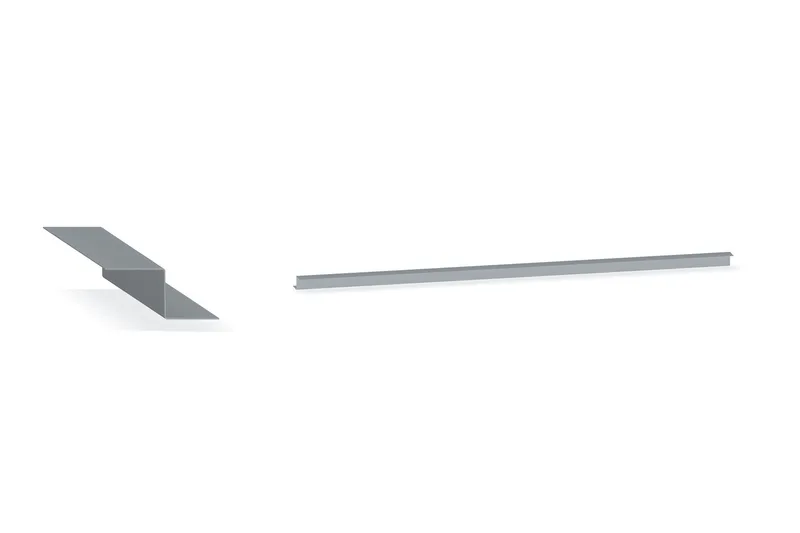

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$10.04/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 3"; 3 1/8"; 3 3/4"; 4"; 4 1/8"
- Published dimension A
- 1", 1"; 1 1/8", 1"; 1 3/4", 1"; 2", 1"; 2 1/8", 1"
- Published weight per piece
- 2.45#; 2.55#; 3.06#; 3.27#; 3.37#
Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5011 | 1", 1" | 10'-2" | 3" | 2.45# |
| T-5012 | 1 1/8", 1" | 10'-2" | 3 1/8" | 2.55# |
| T-5014 | 1 3/4", 1" | 10'-2" | 3 3/4" | 3.06# |
| T-5015 | 2", 1" | 10'-2" | 4" | 3.27# |
| T-5016 | 2 1/8", 1" | 10'-2" | 4 1/8" | 3.37# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
