TRIM CATALOG · Concealed Fastener Trim
Two Piece Jamb Trim - MasterLine 16®
0 ratings0 recorded purchasers
Two Piece Jamb Trim - MasterLine 16®. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5541

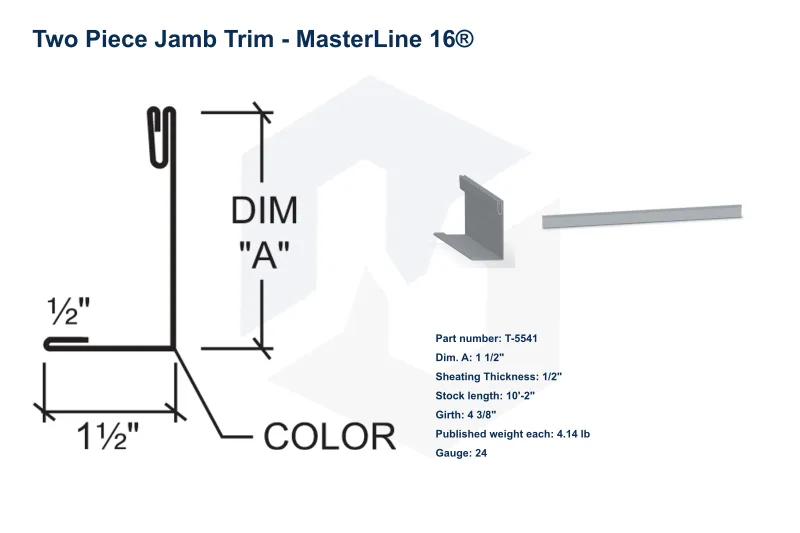

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$19.64/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"
- Published girth
- 4 3/8"; 5"; 5 1/4"; 5 3/4"; 6 1/4"
- Published dimension A
- 1 1/2"; 1 3/4"; 2"; 2 1/2"; 3"
- Published weight per piece
- 4.14#; 3.93#; 4.34#; 4.76#; 5.17#
Supplier specifications
| Part # | Dim. A | Sheating Thickness | Length | Girth | Weight Each |
|---|---|---|---|---|---|
| T-5541 | 1 1/2" | 1/2" | 10'-2" | 4 3/8" | 4.14# |
| T-5542 | 1 3/4" | 3/4" | 10'-2" | 5" | 3.93# |
| T-5543 | 2" | 1" | 10'-2" | 5 1/4" | 4.34# |
| T-5544 | 2 1/2" | 1 1/2" | 10'-2" | 5 3/4" | 4.76# |
| T-5545 | 3" | 2" | 10'-2" | 6 1/4" | 5.17# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
