Termination Trim
Termination Trim. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5392

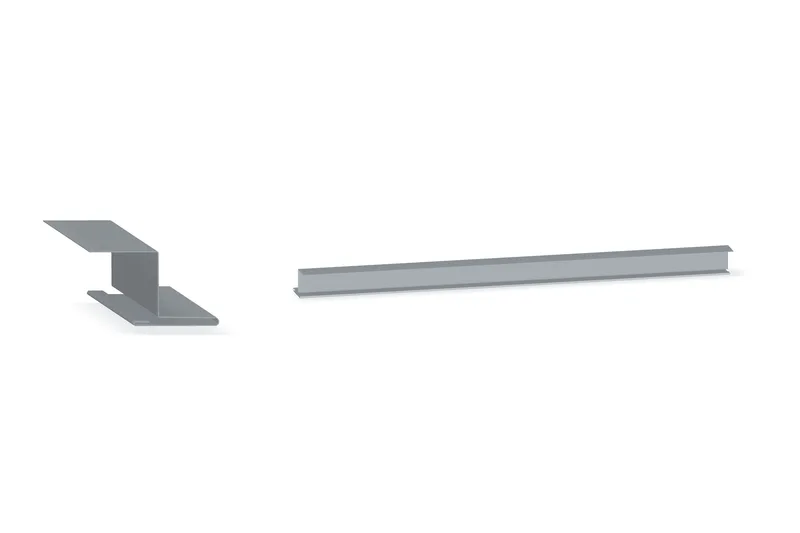

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Supplier-table lengths (reference)
- 10'-2"; 10-2"
- Published girth
- 7 1/4"; 7 3/4"; 7 7/8"; 8 3/4"; 9 1/4"
- Published dimension A
- 1"; 1 1/2"; 1 5/8"; 2 1/2"; 3"
Stock-length confirmation required: saved option 10'-2" versus supplier-table label 10-2". The supplier-table labels are reproduced as published and may be inconsistent or malformed. The figures above are general product references; confirm the intended stock length before ordering. No weight is assigned to the conflicting saved option.
Supplier specifications

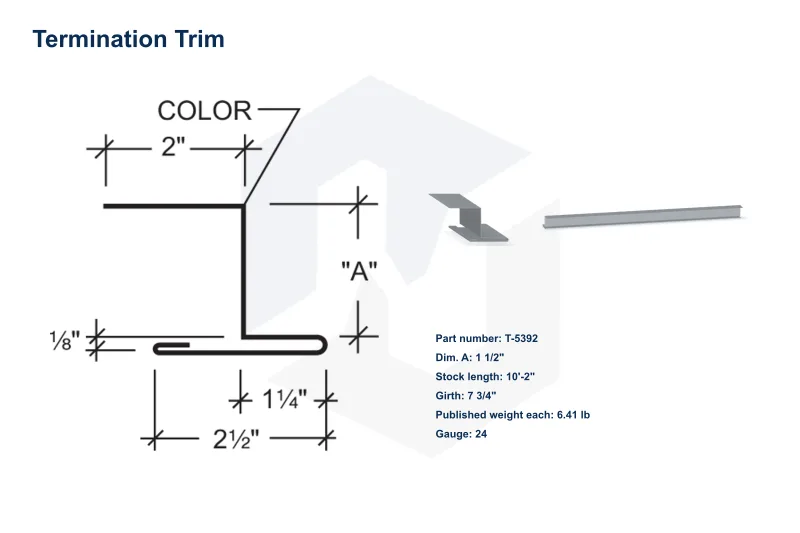

| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5391 | 1" | 10'-2" | 7 1/4" | 6.00# |
| T-5392 | 1 1/2" | 10'-2" | 7 3/4" | 6.41# |
| T-5393 | 1 5/8" | 10'-2" | 7 7/8" | 6.51# |
| T-5394 | 2 1/2" | 10'-2" | 8 3/4" | 7.24# |
| T-5395 | 3" | 10-2" | 9 1/4" | 7.65# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
