TRIM CATALOG · Standing Seam Roof Trim
Splice Trim
Splice Trim. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.T5361

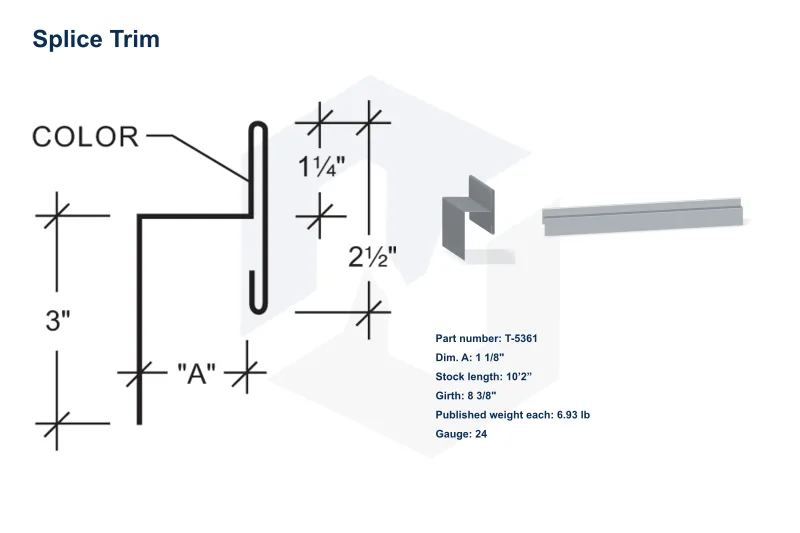

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Published lengths
- 10’2”
- Published girth
- 8 3/8"; 8 7/8"; 9"; 9 1/4"; 9 3/8"
- Published dimension A
- 1 1/8"; 1 5/8"; 1 3/4"; 2"; 2 1/8"
- Published weight per piece
- 6.93#; 7.34#; 7.45#; 7.65#; 7.76#
The supplier length notation 10’2” and the saved option 10'-2" both indicate 10 feet 2 inches. Published profile dimensions and weights remain general references; match the exact profile before using a listed weight.
Supplier specifications
| Part # | Dim. A | Length | Girth | Weight Each |
|---|---|---|---|---|
| T-5361 | 1 1/8" | 10’2” | 8 3/8" | 6.93# |
| T-5365 | 1 5/8" | 10’2” | 8 7/8" | 7.34# |
| T-5362 | 1 3/4" | 10’2” | 9" | 7.45# |
| T-5363 | 2" | 10’2” | 9 1/4" | 7.65# |
| T-5364 | 2 1/8" | 10’2” | 9 3/8" | 7.76# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
