Soffit Angle Trim
Soffit Angle Trim. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.26.018.AG258

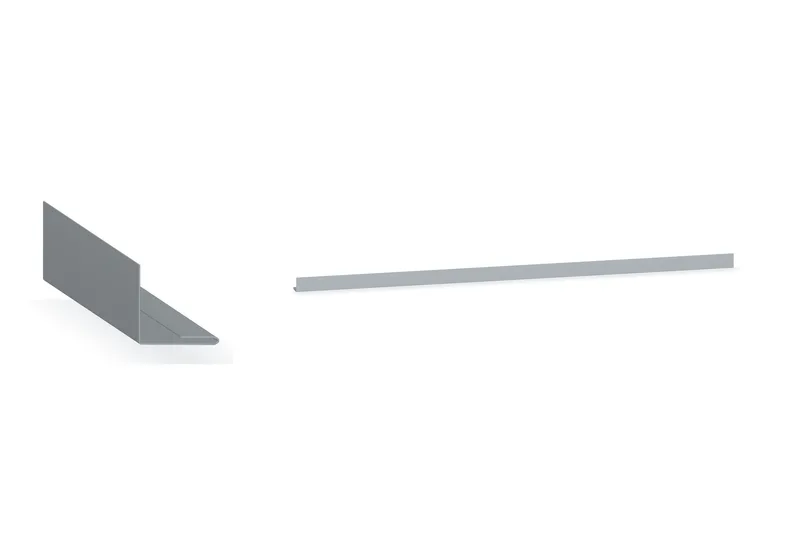

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- AG-258 — 29 gauge, 10'-6"
- girth 2 1/2"; 1.24 lb per piece
- AG-258 — 26 gauge, 10'-2"
- girth 2 1/2"; 1.62 lb per piece
Both gauge and stock length identify the appropriate published weight. These are published stock-profile references. Match the part number, gauge and stock length before using a listed weight; custom cut lengths are not assigned a weight here.
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| AG-258 | 10'-6" | 2 1/2" | 29 | 1.24 lb |
| AG-258 | 10'-2" | 2 1/2" | 26 | 1.62 lb |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
