TRIM CATALOG · Exposed Fastener Trim
Sculptured Hang-On Gutter - PBU
0 ratings0 recorded purchasers
Sculptured Hang-On Gutter - PBU. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL512G

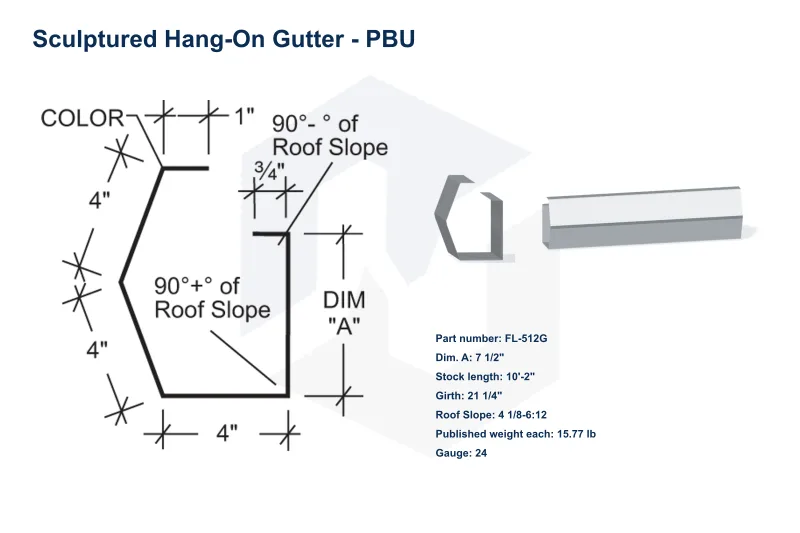

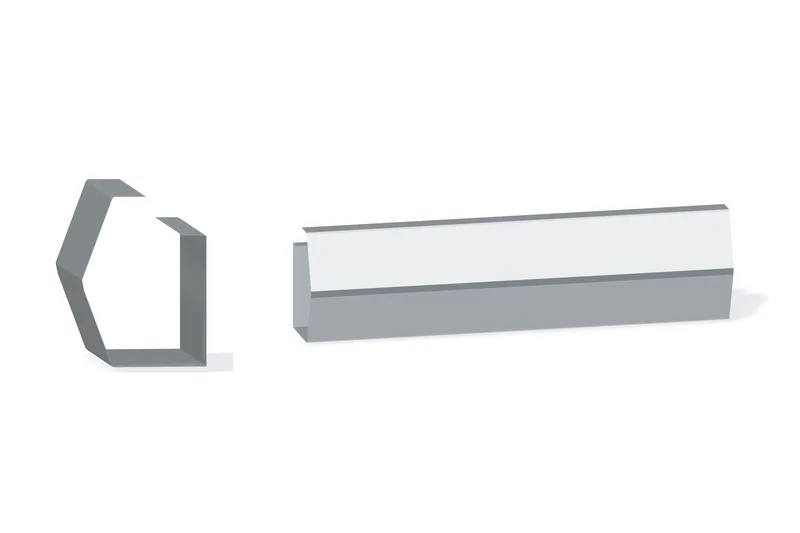

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$59.62/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 20 3/4"; 21 1/4"
- Published dimension A
- 7"; 7 1/2"
- Published roof slopes
- 1/2-4:12; 4 1/8-6:12
- Published weight per piece
- 13.68#; 29.50#; 15.77#; 31.31#
Supplier specifications
| Part # | Dim. A | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|
| FL-512B | 7" | 10'-2" | 20 3/4" | 1/2-4:12 | 13.68# |
| FL-512C | 7" | 20'-2" | 20 3/4" | 1/2-4:12 | 29.50# |
| FL-512G | 7 1/2" | 10'-2" | 21 1/4" | 4 1/8-6:12 | 15.77# |
| FL-512H | 7 1/2" | 20'-2" | 21 1/4" | 4 1/8-6:12 | 31.31# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
