TRIM CATALOG · Exposed Fastener Trim
Sculptured Hang-On Gutter - 7.2 Panel
0 ratings0 recorded purchasers
Sculptured Hang-On Gutter - 7.2 Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL517B

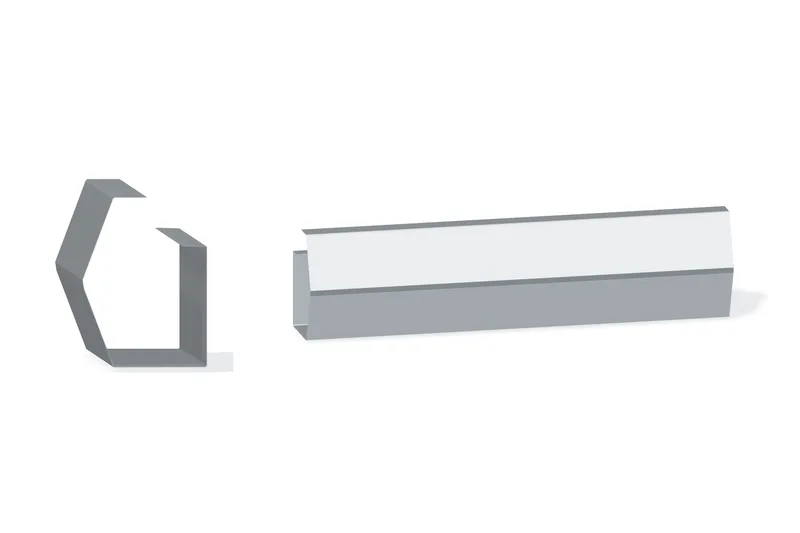

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$56.43/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 20"; 20 3/8"
- Published dimension A
- 6 1/4"; 6 5/8"
- Published roof slopes
- 1/2-4:12; 4 1/8-6:12
- Published weight per piece
- 13.19#; 26.16#; 13.43#; 26.65#
Supplier specifications
| Part # | DIM "A" | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|
| FL-517B | 6 1/4" | 10'-2" | 20" | 1/2-4:12 | 13.19# |
| FL-517C | 6 1/4" | 20'-2" | 20" | 1/2-4:12 | 26.16# |
| FL-517G | 6 5/8" | 10'-2" | 20 3/8" | 4 1/8-6:12 | 13.43# |
| FL-517H | 6 5/8" | 20'-2" | 20 3/8" | 4 1/8-6:12 | 26.65# |
Product resources
Request current drawings and installation instructions for your selected product.

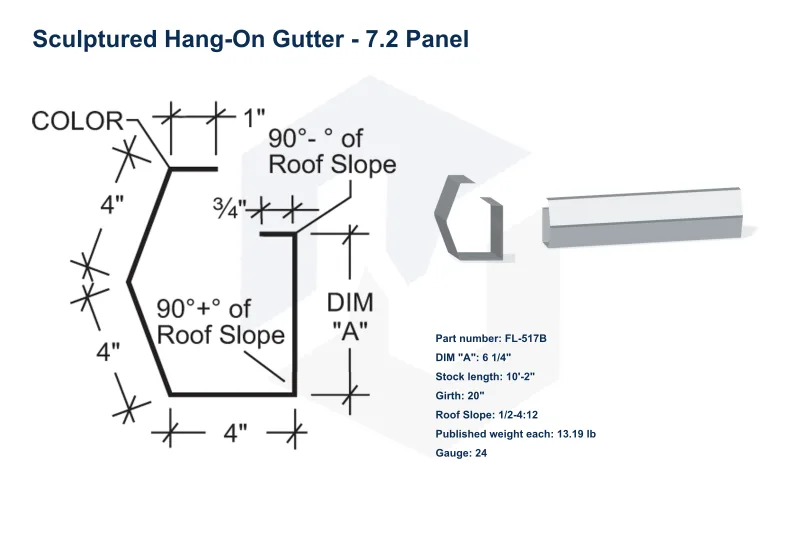

Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
