TRIM CATALOG · Exposed Fastener Trim
Sculptured Eave Gutter - PBR
0 ratings0 recorded purchasers
Sculptured Eave Gutter - PBR. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL18

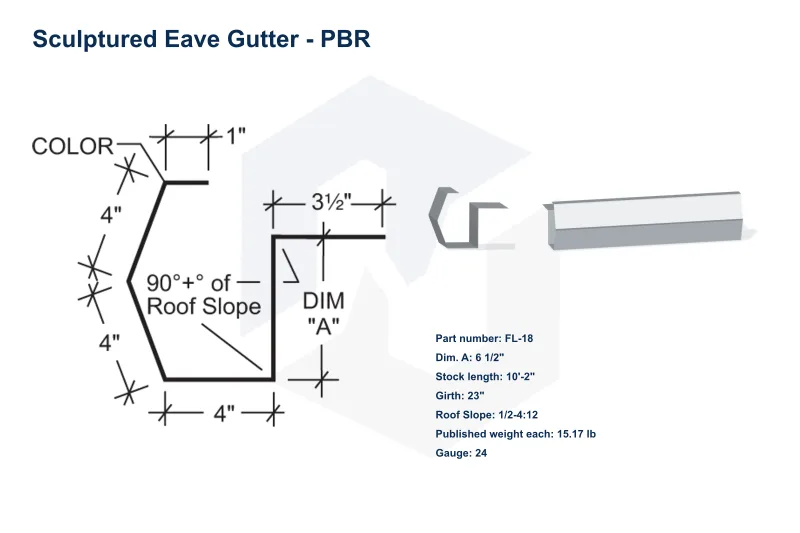

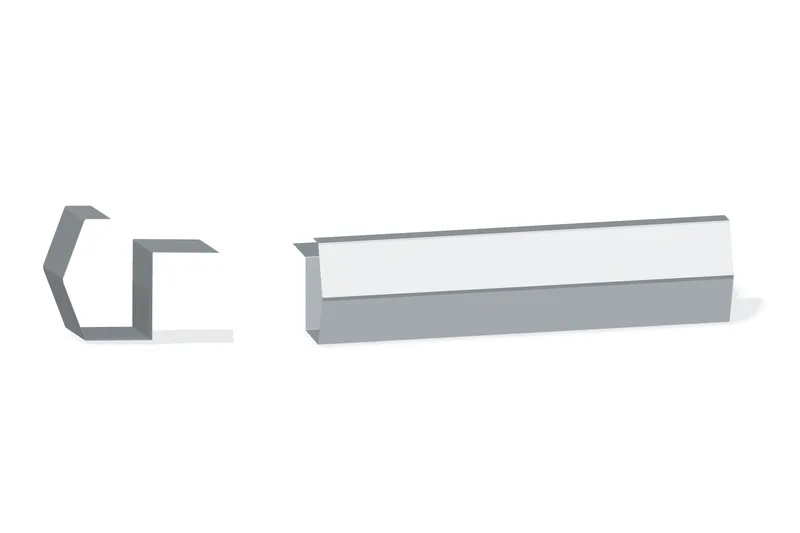

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$64.13/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 23"; 23 1/2"
- Published dimension A
- 6 1/2"; 7"
- Published roof slopes
- 1/2-4:12; 4 1/8-6:12
- Published weight per piece
- 15.17#; 35.40#; 17.88#; 35.47#
Supplier specifications
| Part # | Dim. A | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|
| FL-18 | 6 1/2" | 10'-2" | 23" | 1/2-4:12 | 15.17# |
| FL-18B | 6 1/2" | 20'-2" | 23" | 1/2-4:12 | 35.40# |
| FL-18H | 7" | 10'-2" | 23 1/2" | 4 1/8-6:12 | 17.88# |
| FL-18J | 7" | 20'-2" | 23 1/2" | 4 1/8-6:12 | 35.47# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
