Sculptured Eave Gutter - 7.2 Panel
0 ratings0 recorded purchasers
Sculptured Eave Gutter - 7.2 Panel. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, profile dimensions, and length for your project.
Part: 60.24.018.FL517

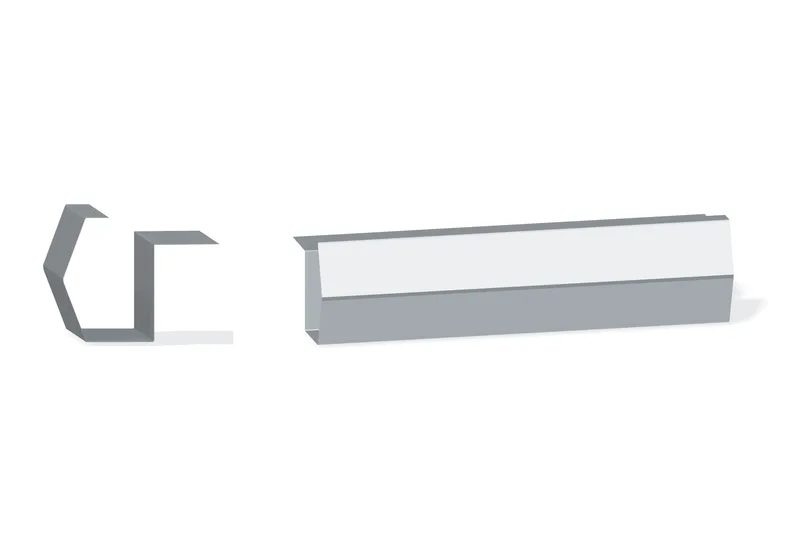

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Price for selected quantity$64.78/1 piece
per piece
Price recorded
Published product details
- Published lengths
- 10'-2"; 20'-2"
- Published girth
- 23.25; 23 1/4"; 20"; 23 5/8"
- Published dimension A
- 6 1/4"; 6 5/8"
- Published roof slopes
- 1/2-4:12; 4 1/8-6:12
- Published weight per piece
- 15.33#; 30.41#; 13.19#; 15.58#; 30.90#
Supplier specifications

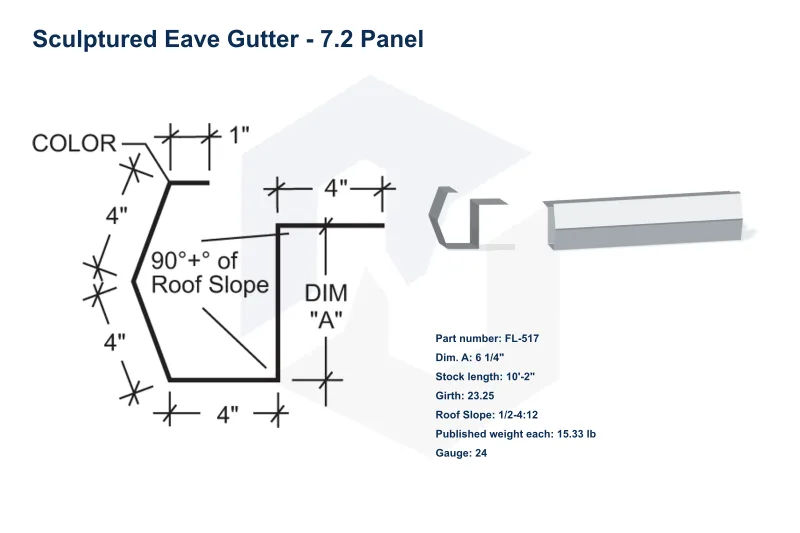

| Part # | Dim. A | Length | Girth | Roof Slope | Weight Each |
|---|---|---|---|---|---|
| FL-517 | 6 1/4" | 10'-2" | 23.25 | 1/2-4:12 | 15.33# |
| FL-517A | 6 1/4" | 20'-2" | 23 1/4" | 1/2-4:12 | 30.41# |
| FL-517B | 6 1/4" | 10'-2" | 20" | 1/2-4:12 | 13.19# |
| FL-517E | 6 5/8" | 10'-2" | 23 5/8" | 4 1/8-6:12 | 15.58# |
| FL-517F | 6 5/8" | 20'-2" | 23 5/8" | 4 1/8-6:12 | 30.90# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
