TRIM CATALOG · Concealed Fastener Trim
Residential Gutter
Residential Gutter. Metal trim for the listed panel system and assembly detail. Check the profile, finish, length, and connection requirements against the project drawings before ordering. Choose color / finish, gauge, and length for your project.
Part: 60.24.018.FL1000

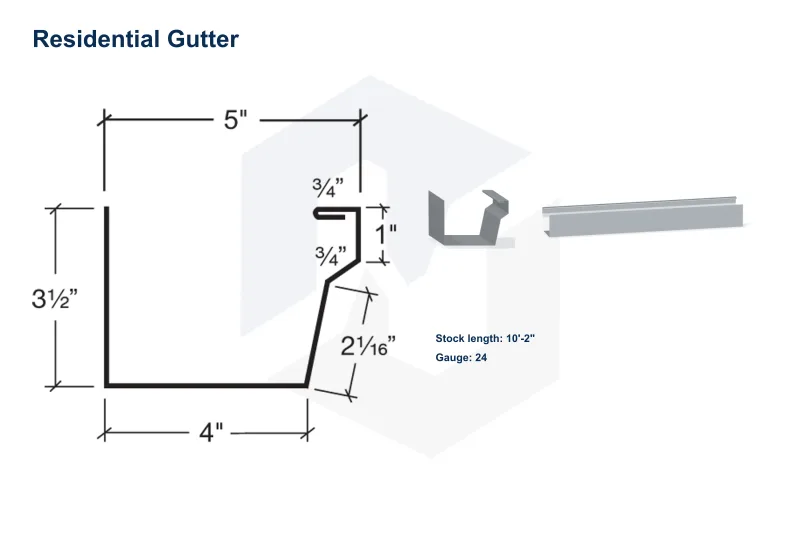

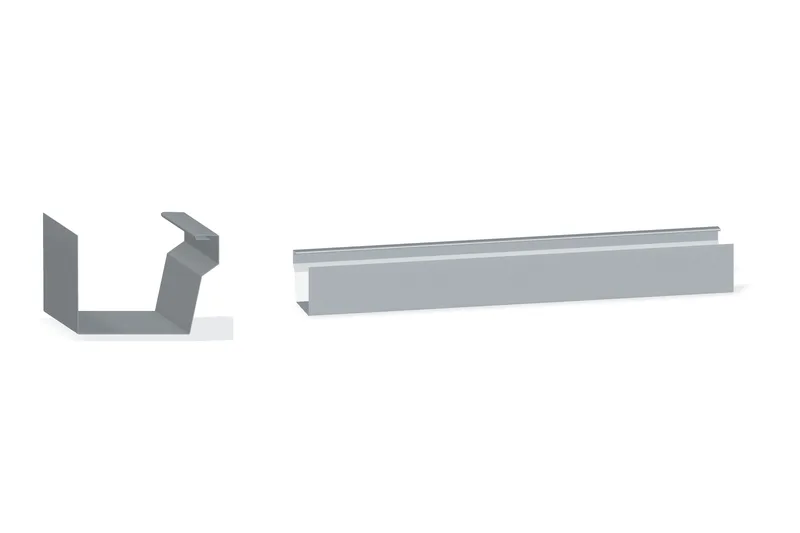

1 / 3 · Product reference illustration. The shown finish and dimensions are representative; refer to the selected product options.
PRODUCT OPTIONS
Configure this product
Choose specifications for your supply list.
Published product details
- Supplier-table lengths (reference)
- 10'-6"
- Published gauges
- 29; 26; 24
- Published girth
- 12 9/16"
Stock-length confirmation required: saved option 10'-2" versus supplier-table label 10'-6". The supplier-table labels are reproduced as published and may be inconsistent or malformed. The figures above are general product references; confirm the intended stock length before ordering. No weight is assigned to the conflicting saved option.
Supplier specifications
| Part # | Length | Girth | Gauge | Weight Each |
|---|---|---|---|---|
| FL-1000 | 10'-6" | 12 9/16" | 29 | 6.41# |
| FL-1000 | 10'-6" | 12 9/16" | 26 | 8.28# |
| FL-1000 | 10'-6" | 12 9/16" | 24 | 10.39# |
Product resources
Request current drawings and installation instructions for your selected product.
Preview shows the manufacturer profile. Custom dimensions and roof pitch require detail confirmation.
